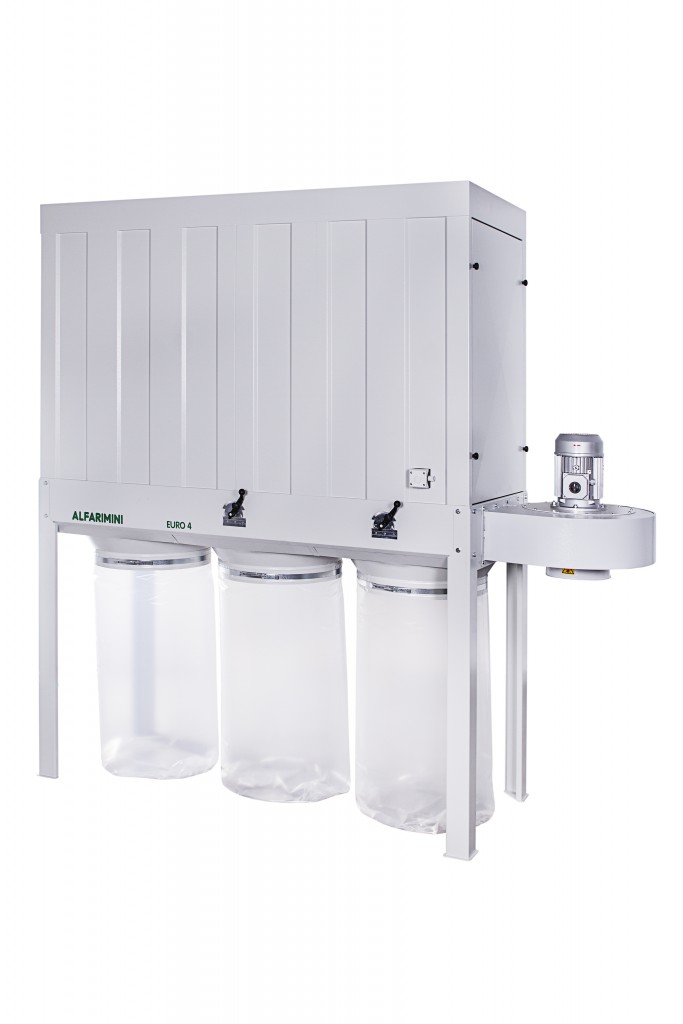

ALFARIMINI Euro 4 Standard

The EURO 4 filter is the model with the highest performance in the whole Euro range. Although it has a large filter surface and capacious collecting bags, the machine is delivered fully assembled, in its entirety, except feet and fan. It is therefore installed in a matter of minutes, in an extremely easy and quick way. The complete system is ready to be started up and extract all the machines in the workshop. It is normally supplied with a powerful 7.5 HP motor, or, alternatively, with a SILENCED fan of lower or equal power. EURO 4 is completely faired, fitted with 40 filter sleeves and a cleaning system with electric shaker. If you need to extract fine dust, you may request the filter sleeves made in a fabric that is better suited to the dust to be extracted, such as polyester satin or needle felt. In this way, even the finest dust is collected and not dispersed in the environment. EURO 4 is designed for ejecting the purified air outside, if a hole is arranged in the roof, for connecting a pipe with flue. The standard fan may be mounted either with the extraction inlet facing upwards or downwards. You may decide at the time of installation. The filter is designed to work in both positions. The machine is entirely painted, but is not suited for placing outdoors, exposed to weathering. If you are looking for a machine to be placed in unprotected premises you may opt for models MIDI MAX or ALFA MAX. Made in Italy All our motors and machines are manufactured entirely in Italy, with top quality Italian or European components. They are highly reliable machines.
$9,985.00
Customize
3921299000023487011
View Details
Product Details
Specification
7.5 HP motor with electric shaker and overload protection
CFM: 4708
(40) cotton sleeves with electric shaker
27 sqmt of filtering surface
(3) Lower nylon dust collection bags
 280 mm suction hood
7.5 HP motor IE3 alim. 3ph-220V - 60Hz
All electric components are CERT. UL for USA
Includes Pro Electrical Panel Starter
Dba: 82.4
Dimensions: 114" x 35" x 112"
Weight: 627 lbs
