Boring

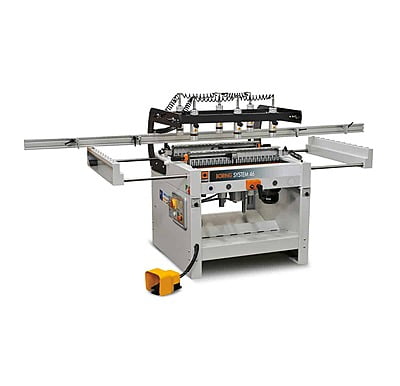

• (2) 23-Spindle heads on 32 mm centers • Distance between first and last spindle center of each head is 27-23/32″ (704 mm) • Front end adjustment for quick and easy set-up • (2) 2 HP 3,500 RPM motors • Max. boring depth is 2-1/16″ (55 mm) • Side depth counter system • Extractable 400 mm support rollers for long panels • Maximum distance between heads is 25-19/32″ (650 mm) • Minimum width is 5-1/8″ (130 mm) • Distance from fence to first head is 15 mm min. to 494 mm max. • Distance from fence to second head is 160 mm to 639 mm max. • Complete with: 46 quick change chucks, 10′ extension fence with (4) flip-stops and (2) pneumatic reference pins • (6) Patented safety clamps • This machine can be used for single or double row line drilling • Uses 24 LH (red) and 22 RH (black) boring bits • Working air pressure 94 psi • Net weight: 820 lbs • Crated weight: 940 lbs

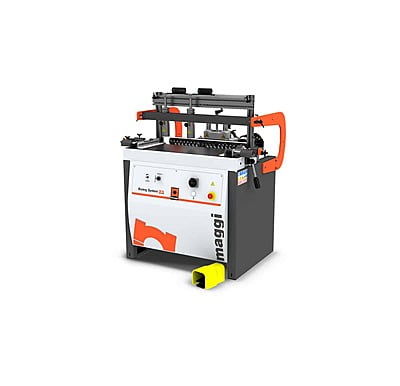

The Maggi System 23 Boring Machine provides a 23 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle. Accurate positioning of the boring unit to the table with digital readout 0 to 2.5″ adjustable drilling depth with patented spiral setting device (2) patented quick release material clamps with auto-setting to firmly hold material to table Powerful 2 HP motor 37″ x 13″ cast iron table Side fences with mechanical digital readout for quick and accurate setting 120″ back fence with (2) stops – Maximum stroke 300 mm (12″) Fixed stop at 37 mm for hinges Foot actuated pneumatic clamps and drill cycle Uses 11 LH (red) and 12 RH (black) boring bits Includes: Magnetic Starter with overload protection and (23) quick change chucks Dust Outlet: 3″ Net weight: 630 lbs Dimensions: 51.7″ x 37.8″ x 50″ Tall Crated Dimensions: 42.2″ x 37.4″ x 40.5″ Tall Crated Weight: 705 lbs.

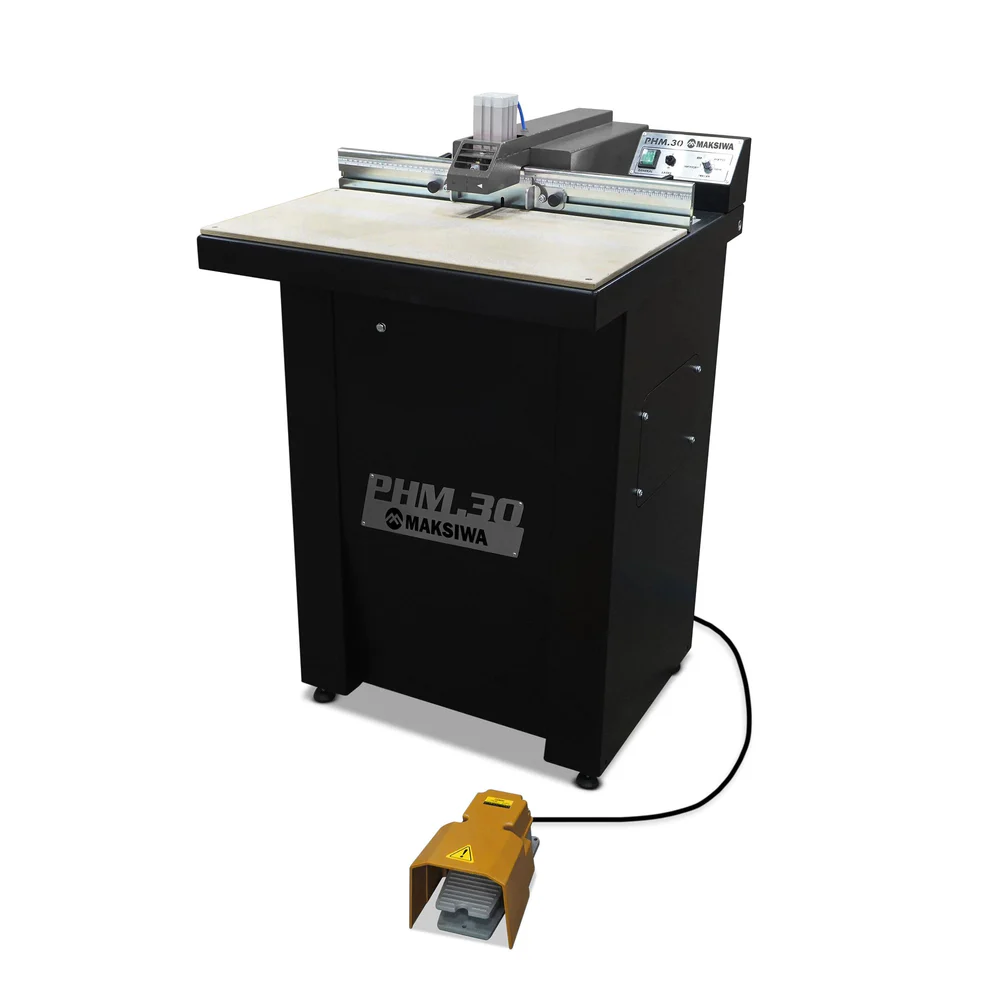

Technical Information PHM.30 Driver Bit Angled 4° Angle Power 1PH -127 v Height 42.5" Router Bosch 2.25 Hp 16 amp Drill Router Bosch 1.0 Hp 12 amp Router Bit 3/8” bit 1/4’’ shank 2 Drill Bit 1/8” – 2 3/4” Wood Thickness Limit 1/2” – 1-9/16” Adjustable Fence Yes Dust Port 4’’ Air Pressure 85 psi Footprint 25” x 30” x 42 1/2" Laser Guide Yes Speed Control Yes Dual Sided Top Yes – Smooth & Textured Depth Gauge Yes – MM & Inches Weight 174 Lbs

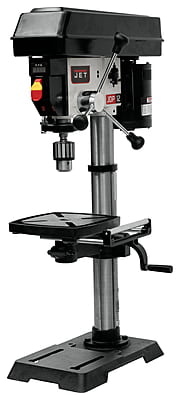

12-Inch Benchtop Variable-Speed Drill Press (JWDP-12)Stock Number JT9-716000 Chuck Size (In.) 5/8 Column Diameter (In.) 2-1/2 Model Number JWDP-12 Motor Amps 5 Motor Power (HP) 1/2 Prop 65 Cancer and Reproductive Harm Spindle Distance to Base (In.) 23-3/8 Spindle Distance to Table (Max.) (In.) 17 Spindle Travel (In.) 3-1/8 Swing (In.) 12 Weight (Lbs.) 85
