Edgebanders

With gluing of the panel edge, also with edging solid wood strips up to 5 mm thickness, offers the “very best” performance in edge banders at this level. The features, coupled to its ease-of-use, makes it the perfect edge bander for small woodworking, furniture and panel processing companies. Technical Data • Work table dimensions mm 3000 x 525 • Min. ÷ max. thickness of rolled edges mm 0,4 ÷ 3 • Max. thickness of edges in strips mm 5 • Min. ÷ max. panel height mm 8 ÷ 50 • Min. panel length/width mm 190/110 • Min. panel length/width with end cutting/rounding unit mm 120/110 • Feed speed

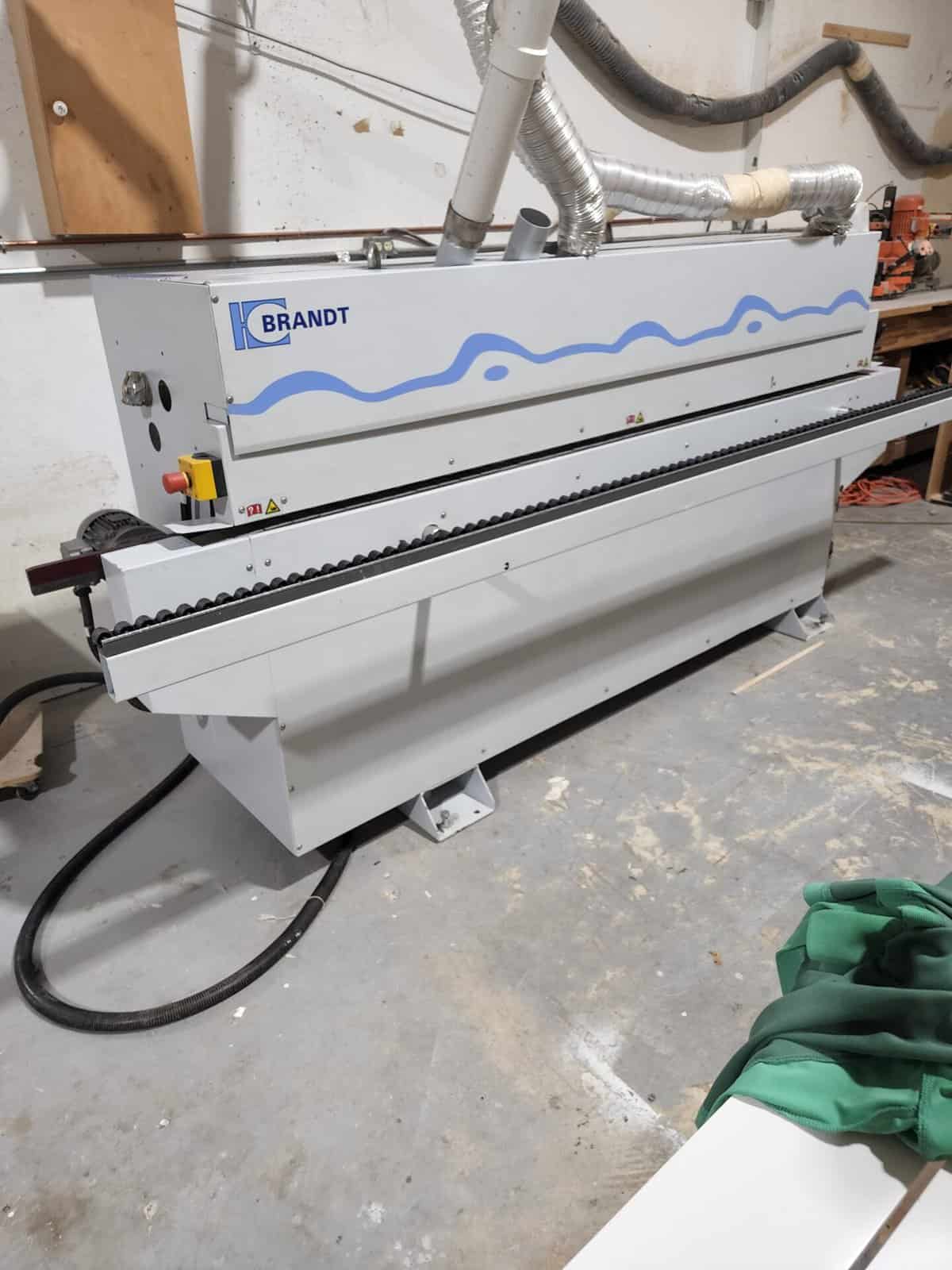

Brand Ambition 1100 Edgebander Stations Include: Pre-Mill Gluing End Trim Top & Bottom Scrape & Buff In good running condition and still in use under power

Further enhanced compared to its predecessor with the new end cutting-rounding unit. This new unit allows further processing, saving a substantial amount of time with an ease of processing. This technological solution is unique in its category, where such operations are normally a feature of more expensive and higher level machinery. Technical Data 1ph 10" EYE-S touch screen control Units: Dual pre-mil combined End trim and Corner rounding Top/bottom trim • Work table dimensions mm 3000 x 525 • Min. ÷ max. thickness of rolled edges mm 0,4 ÷ 3 • Max. thickness of edges in strips mm 5 • Min. ÷ max. panel height mm 8 ÷ 50 • Min. panel length/width mm 190/110 • Min. panel length/width with end cutting/rounding unit mm 120/110

Technical data Min. ÷ max. edge thickness 0,4 ÷ 3 mm Min. ÷ max. edge height 10 ÷ 84 mm Min. ÷ max. panel height 8 ÷ 80 mm Min. panels length/width 290/50 mm Min. internal radius (concave), 0,4 mm thickness 25 mm Min. external radius (convex), 0,4 mm thickness 5 mm Feed speeds 3 - 4 - 5 - 6 - 7 - 8 m/min

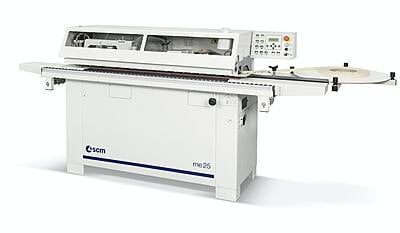

Minimax ME 25 Single Sided Edgebander - Control panel on machine infeed side - Machine frame made of high rigidity ribbed steel to guarantee an excellent support for the operating units - Top thick steel pressure beam with rubber coated wheels - Exclusive feed belt system - Manual adjustment of top beam with automatic positioning of the operating units to the selected panel thickness - Numeric indicator of the selected panel thickness - Wood strip loading device - Glue smoke-specific exhaust outlet; centralized extraction of the other dusts - Panel support roller which can be extended on the entire length of the machine - Safety enclosure - Electrical cabinet with PLC, padlockable main switch and overload protection - Emergency push buttons - Scraping unit (cutter radius 3mm) - Buffing unit (two independent motors – 2,800 rpm) - Adjustable infeed fence with numeric readout - Automatic lowering of the glue pot temperature after temporary non-usage

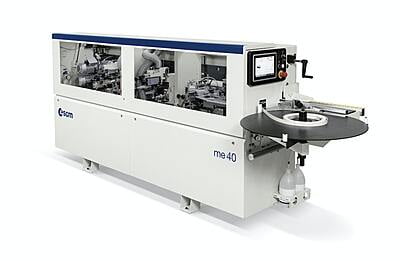

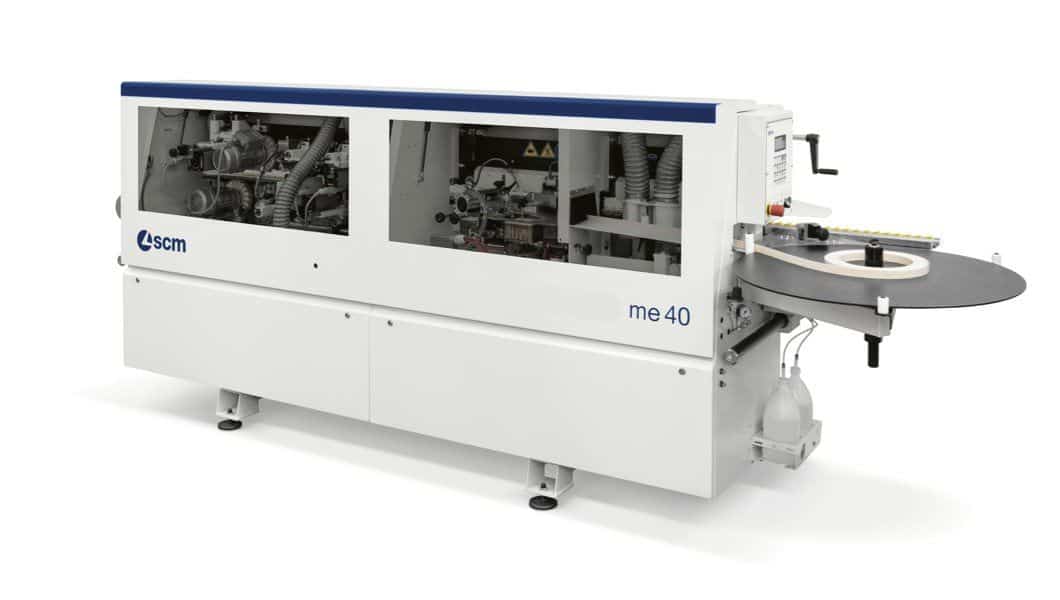

High productivity edge bander with high quality performance. me 40, further enhanced compared to the previous version, with the new rounding unit that allows to obtain high quality finished products, without further processing, allowing a considerable saving of time and increasing ease of processing. Technical Data • Work table dimensions mm 3465 x 710 • Min. ÷ max. thickness of rolled edges mm 0,4 ÷ 3 • Max. thickness of edges in strips mm 5 • Min. ÷ max. panel height mm 8 ÷ 50 • Min. panel length/width mm 190/110 Feed speed m/min 9

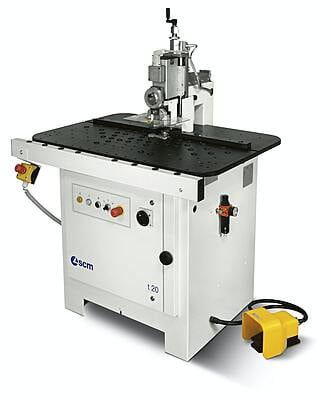

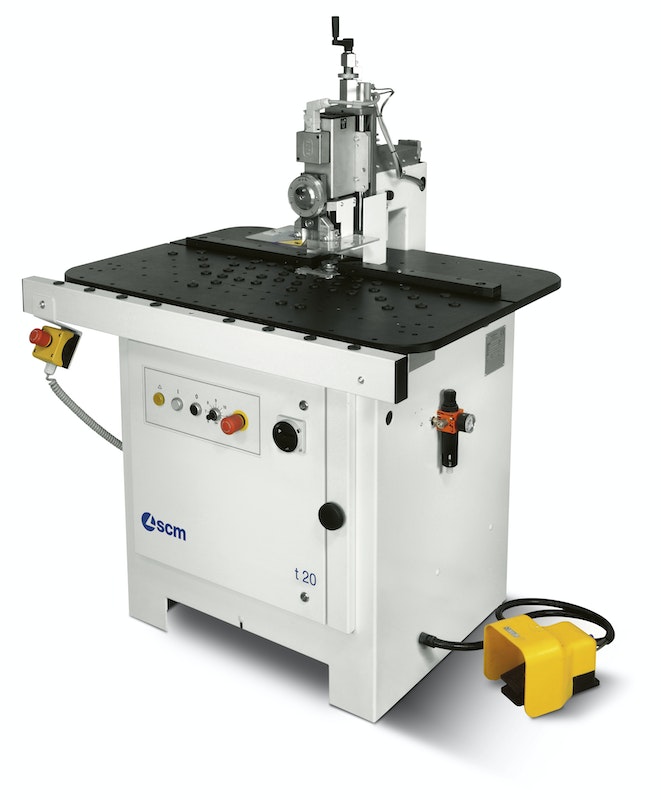

Technical data Max. edgebanding thickness 4 mm Min. - max. panel height 14 - 80 mm Min. panel length/width 200/160 mm Minimum internal radius 25 mm Variable cutters speed 9000 - 15000 rpm

Servo Driven Edgebander, Automatic single sided edgebander designed to be used for edgebanding straight vertical profiles with coiled material (veneer and PVC) and with strips (high-pressure laminate and solid wood) with a maximum thickness of 8mm. Machine Base The machine base is made of a tubular steel structure and is designed to assure maximum stability and accuracy. Electronic Top Pressure Beam All operating units raise and lower simultaneously when the pressure beam is adjusted. No adjustment is required for the glue roller when changing panel thickness. The pressure beam has two rows of staggered pressure rollers with steel bearings. Capacities and Speed • Edgebanding thickness: .4mm – 6mm (.016-1/4”) • Guillotine capacity: 3mm • Feed speed: 36 ft/min. • Panel height: 3/8” min – 2 1/8” max • Minimum panel length: 5 1/2” • Minimum panel width: 2 3/8” • Minimum distance between panels: 22”

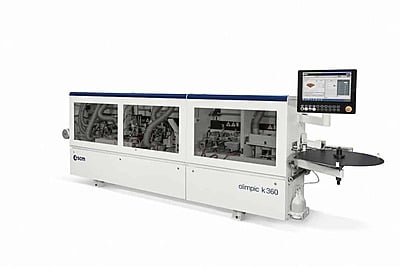

About This Machine: The K360 is an automatic single sided edgebander designed to be used for edgebanding straight vertical profiles with coiled material (veneer and PVC) and with strips (high-pressure laminate and solid wood) with a maximum thickness of 6mm. Machine Base The machine base is made of a tubular steel structure and is designed to assure maximum stability and accuracy. Top Pressure Beam All operating units raise and lower simultaneously when the pressure beam is adjusted. No adjustment is required for the glue roller when changing panel thickness. The pressure beam has two rows of staggered pressure rollers with steel bearings. Capacities And Speed – Edgebanding thickness: .4mm – 6mm (.016-1/4”) – Guillotine capacity: 3mm – Feed speed: 36 ft/min. – Panel height: 3/8” min – 2 1/2” max – Minimum panel length: 5 1/2” – Minimum panel width: 2 3/8” – Minimum distance between panels: 20” Glue Station Teflon coated glue pot to facilitate glue changeover. Warm up time is approximately eight to ten minutes. The unit is also equipped with a quick disconnect plug for changing from one pot to another.

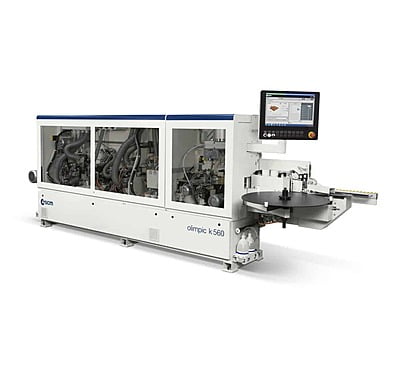

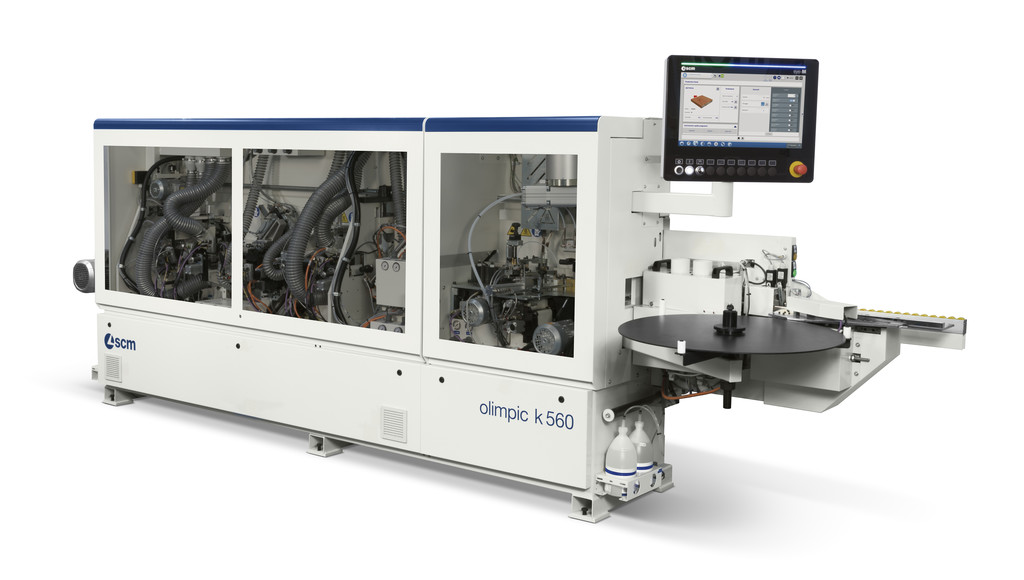

High performance and versatility: olimpic k 560 is designed for companies requiring to process many panels per day even though they may be different from one to another. olimpic k 560 has several solutions that guarantee always the best machining on any panel type. Capacities and Speed – Edgebanding thickness: .4mm – 6mm (.016-1/4”) – Guillotine capacity: 3mm – Feed speed: 40/60 ft/min. – Panel height: 3/8” min – 2 1/8” max – Minimum panel length: 5 1/2” – Minimum panel width: 2 3/8” – Minimum distance between panels: 20”

The machine base is made of a tubular steel structure and is designed to assure maximum stability and accuracy. Pressure Beam: All operating units raise and lower simultaneously when the pressure beam is adjusted. No adjustment is required for the glue roller when changing panel thickness. The pressure beam has digital height indicators and a double row of pressure rollers with steel bearings Capacities And Speed: – Edgebanding thickness: .4mm – 3mm (.016-1/8”) – Guillotine capacity: 3.0mm – Feed speed: 30 ft/min. – Panel height: 3/8” min – 1 15/16” max – Minimum panel length: 5 1/2” – Minimum panel width: 2 3/8” – Minimum distance between panels: 22” Glue Station Teflon coated glue pot to facilitate glue changeover. Warm up time is approximately eight to ten minutes. The unit is also equipped with a quick disconnect plug for changing from one pot to another.

Edge thickness mm 0,4 - 6/8 (12 opt.) Panel thickness mm 8 - 60 Feed speed m/min 12 - 18 Compressed air bar 6

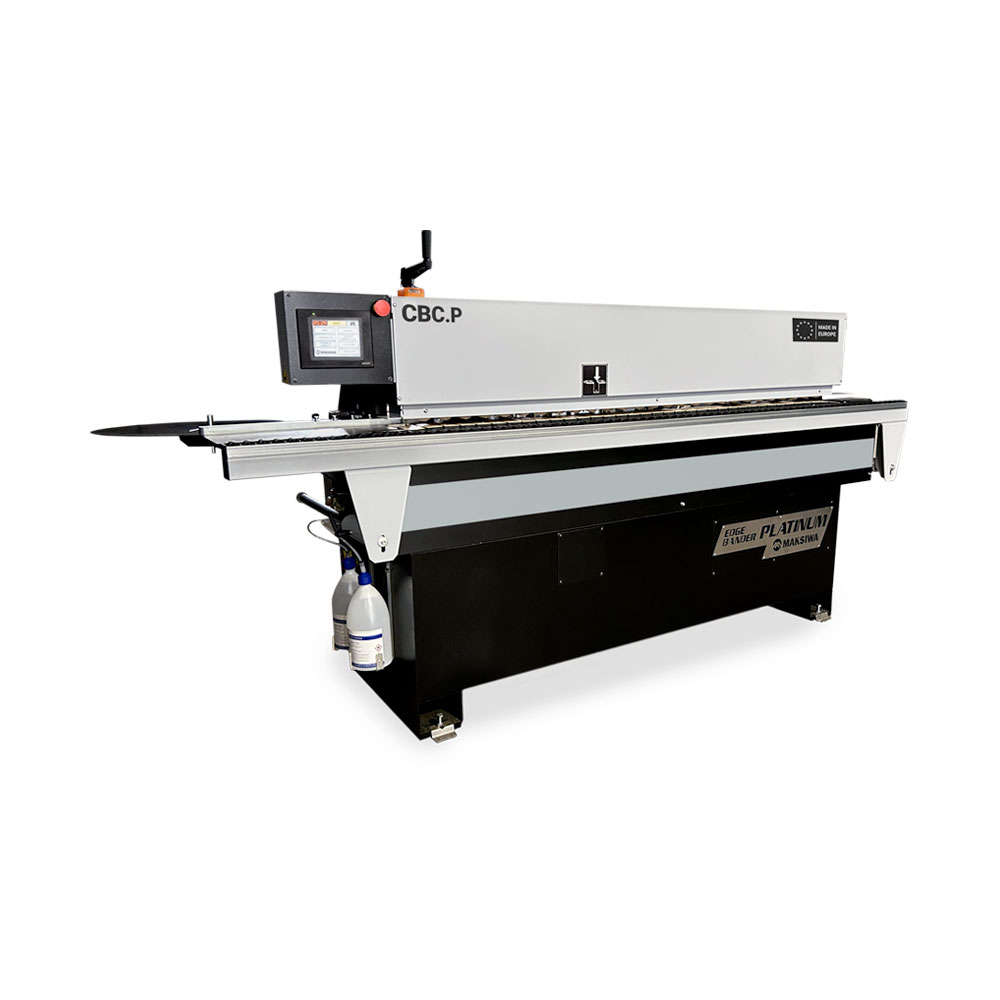

CBC.P SPECIFICATIONS Automatic Feeding speed 23 ft/min Panel thickness Min/Max 13/32” - 1 31/32” Max Pre-milling Height 1” Edgebanding thickness 0.0157" - 0.118" Glue Pot Capacity 3.3lbs Max Edgebanding Height 2" Minimum panel width 3" Minimum panel length 7 7/8" Extendable Panel Support Rail Length 102" Extension table Max Width 54" Size of Dust Collector Ports 6" Minimum Dust Collection Requirements 1236 CFM Air Pressure Requirement 13.4 SCFM @ 87PSI Edgebanding coil Support Diameter 59" Recommend Glue Temperature Range 356°F - 410°F Max. machine dimensions (LxWxH) 112”x 34”x 49” Machine dimensions w/ Caster Wheel (LxWxH) 112"x 46-1/4"x 56" Net weight 1719 LBS Shipping dimensions (LxWxH) 86” x 36” x 57” Glue Type Granulated Hot-Melt EVA / PUR Electrical Information 1 Phase 220V 30 Amps 60Hz 1 Phase 220V 30 Amps 60Hz Sound Rating 80 dB

Technical Information Eletrical specs 1 Phase 110V 1500W 60Hz Dual Motor Specs 24 V 10 AMPS Manual Feeding speed 0-26 FT/MIN Max Edgebanding Height 3" Edgebanding coil Support Diameter 19 1/2" Edgebanding thickness 0.4 - 2 MM Edgebanding Material Melamine /PVC/ABS/PP/ VEENER non-fleeced Glue Pot Capacity 1.5 Lbs Recommend Glue Temperature Range 130 - 180°C Glue Pot Tape Granulated Hot-Melt (Extensions open) Machine dimensions (LxWxH) (101 3/4") 58" x 43" x 43" Shipping Dimensions (LxWxH) 47 x 30 x 50 Weight 330 lbs

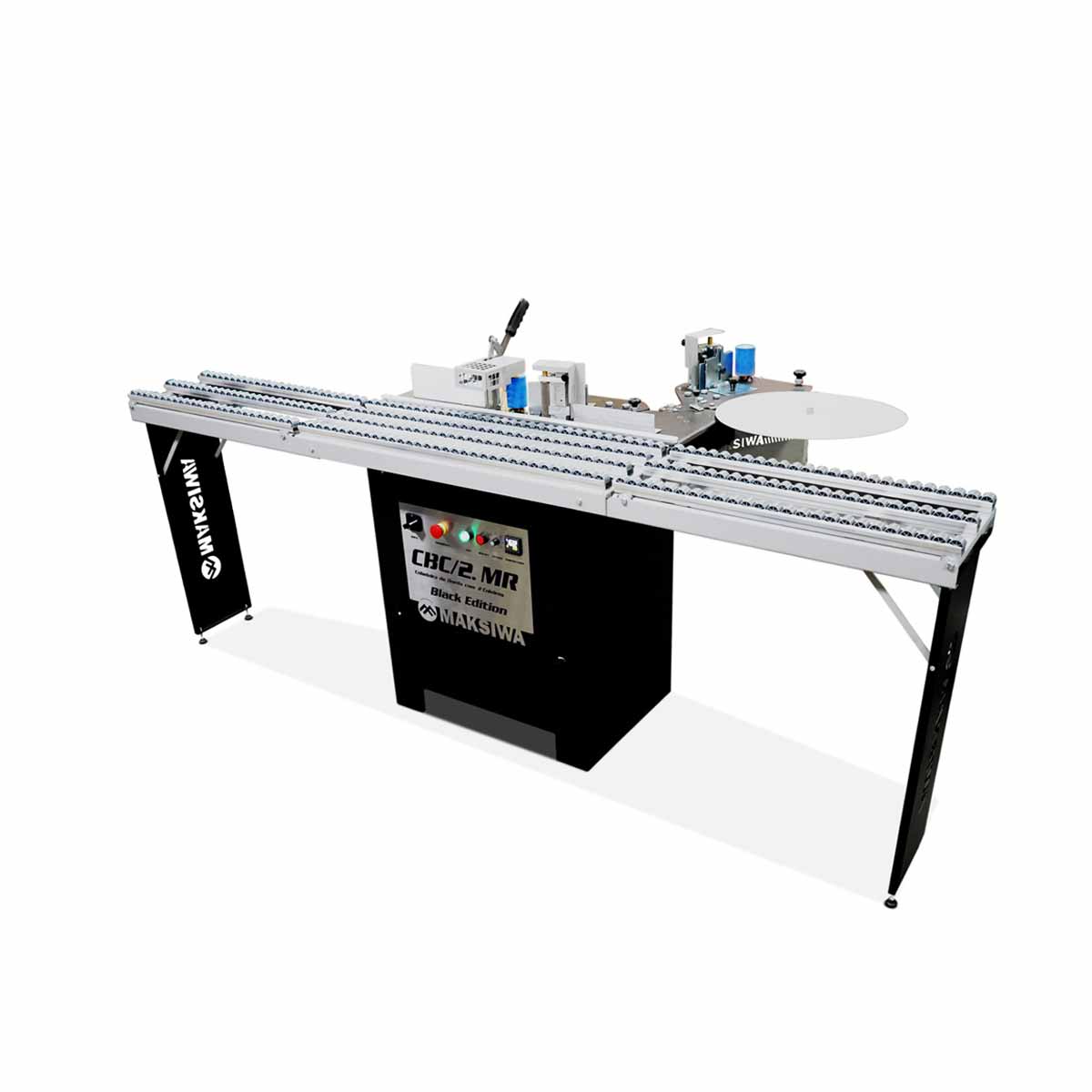

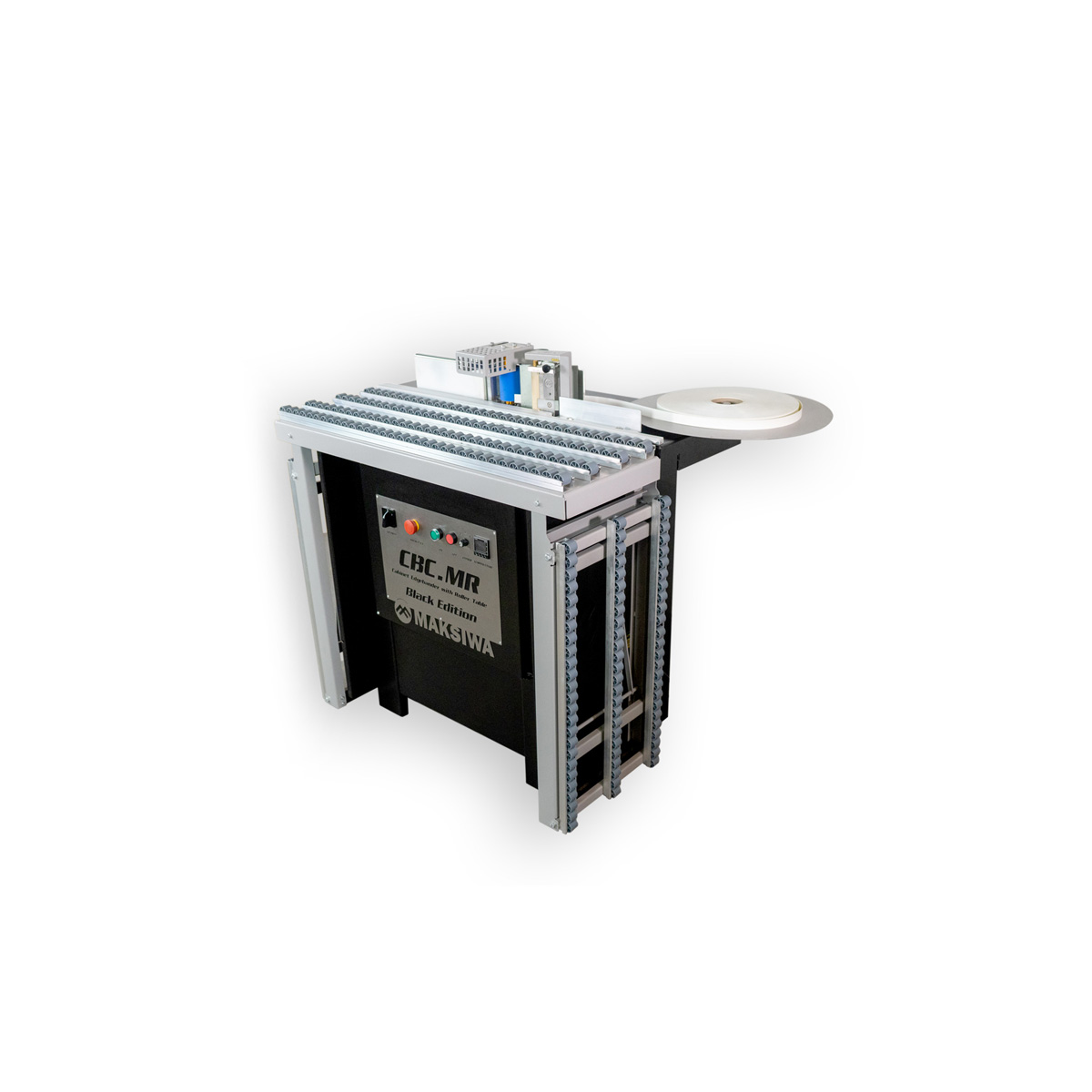

Technical Information CBC.MR Electrical specs 1 Phase 110 V 1500 W 60Hz Motor specs 24 V 10 Amp Manual Feeding Speed 0 - 26ft/min Max edgebanding Height 3" Edgebanding Coil Support Diameter 19 1/2" Tape Thickness 0.4 - 2mm Edgebanding Material Melamine /PVC/ABS/PP/ VEENER non-fleeced Glue Pot Capacity 1.5 lbs Recommended Glue Temperature Range 130° to 180º C Glue Pot Tape Granulated Hot-Melt (Extensions) Machine Dimension LxWxH (101 3/4") 48 1/2" x 35 1/2" x 43" Shipping Dimension 43" x 30" x 50" Weight 240 Lbs.

Technical Information CBC.E Electrical specs 1 Phase 110 V 1500 W 60Hz Motor specs 24 V 10 Amp Manual Feeding Speed 18ft/min Max edgebanding Height 3" Edgebanding Coil Support Diameter 19 1/2" Tape Thickness 0.4 - 2mm Edgebanding Material Melamine /PVC/ABS/PP/ VEENER non-fleeced Glue Pot Capacity 1.5 lbs Recommended Glue Temperature Range 130° to 180º C Glue Pot Tape Granulated Hot-Melt Max. Machine Dimension 47" x 31" x 42" Shipping Dimension 32" x 22" x 20" Weight 114 Lbs.

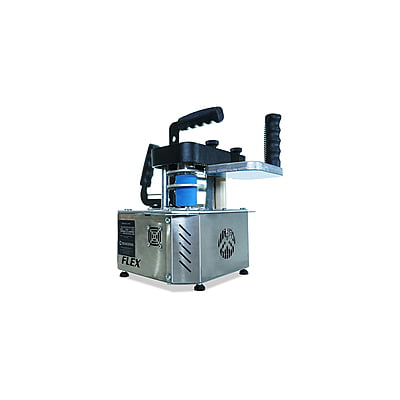

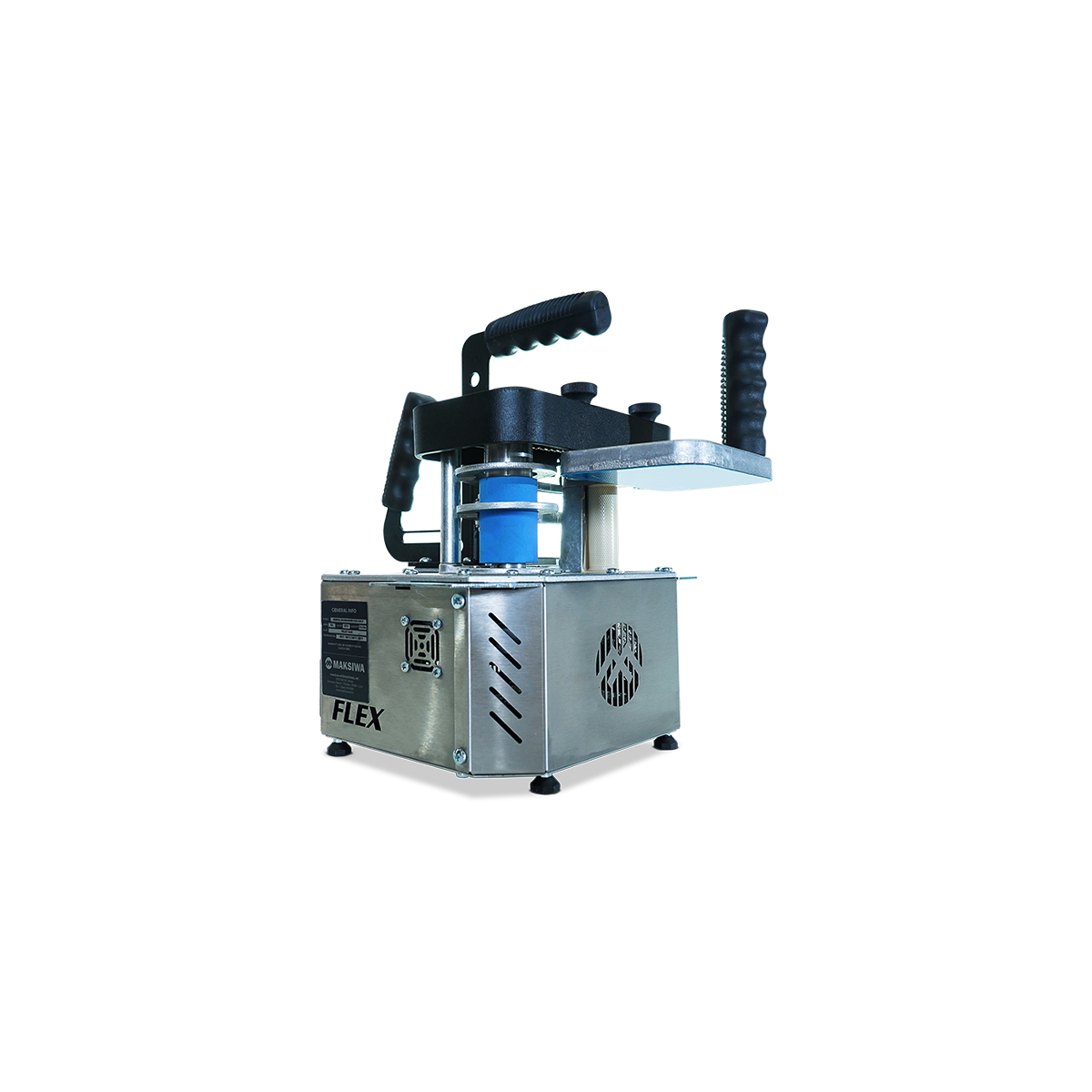

Technical Information CBC FLEX Glue Granulated Hot-Melt Glue Temperature 130° to 180º C Motor specs 1 Phase 127 V 5.5 A 700 W Tape thickness 0.3 mm – 1 mm Max. tape width 0-35/64” to 1-57/64” Feeder speed 0 to 19 ft/min Weight 21 Lbs

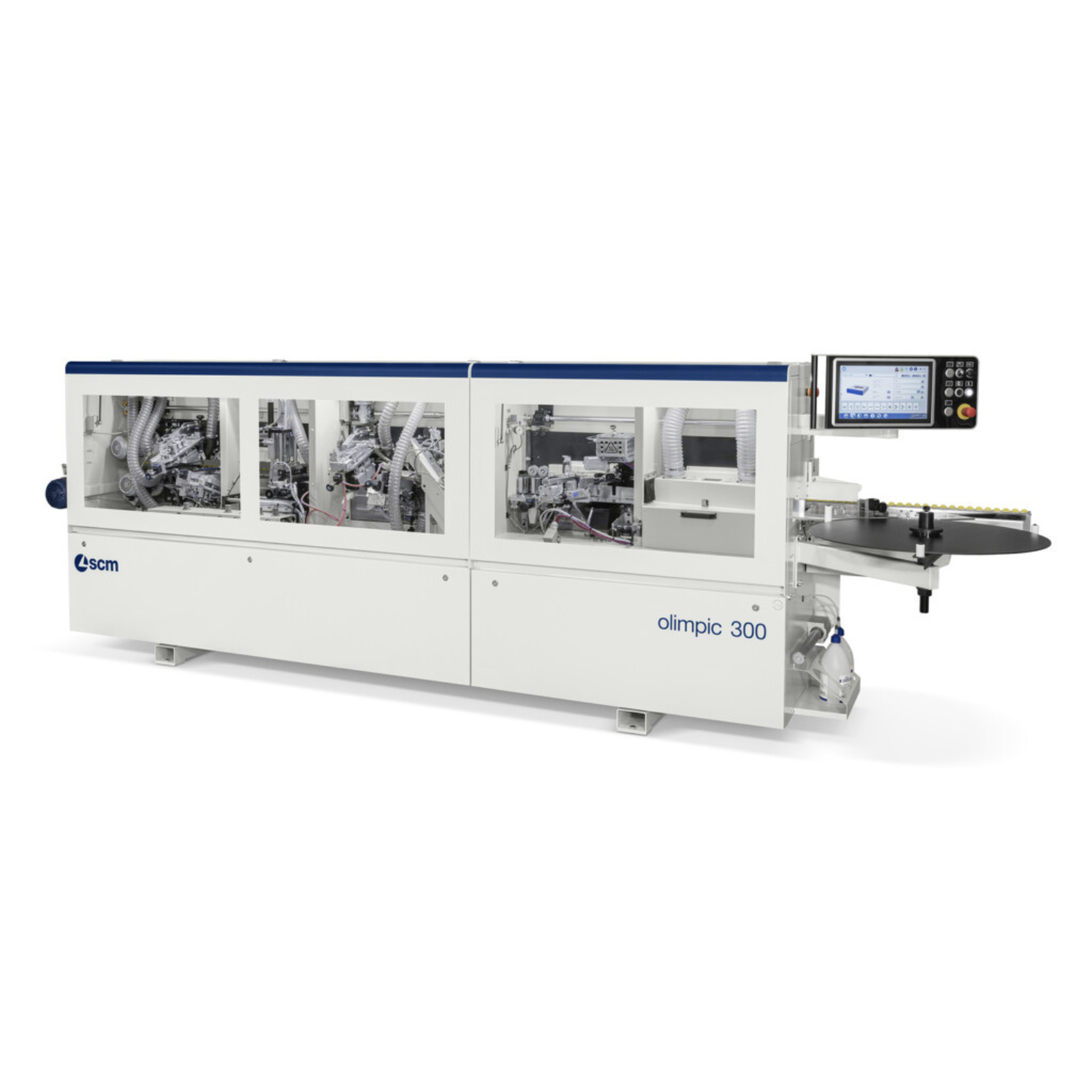

Compact edge bander with a sturdy framework that guarantees reliability and repeatability. Thanks to its technological solutions, olimpic 300 is ideal for craftsmen who want to start edging professionally, with ease of use and maximum finishing quality.
