Chop Saws

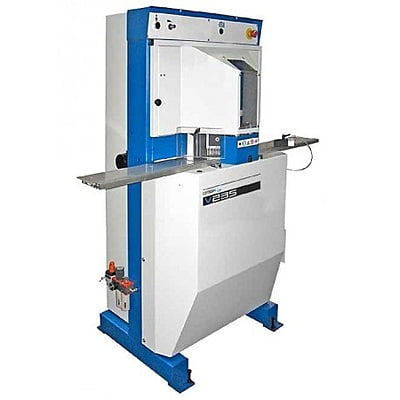

Double Mitre Saw for "V" cutting and Picture Frames. Two 14" saw blades, 3 1/2" width capacity. Last generation vertical Double Mitre Saw from OMGA, the V 235 is the result of 30 years of experience in this field. This compact and powerful system counts with all features and patented devices that OMGA designed throughout the years, such as the ProfilBlock clamping system or the popular patented Scaled Tables to name a few. The vertical travel system along with its 2 powerful 2 HP motors, make of the V 235 the perfect choice for accuracy and toughness in a variety of application for the picture frame, cabinet and millwork industries. Because of its versatility the V 235 is well suited to be connected with our OMGA Stop TM creating a truly integrated system which can be configured in a variety of levels of automation to fulfill the most demanding mitering tasks. Optional equipment such as Scaled Table Extensions, Dust collecting Systems, additional Moveable Stops, Aluminum version Kit and others, can be added to further complete the standard machine.

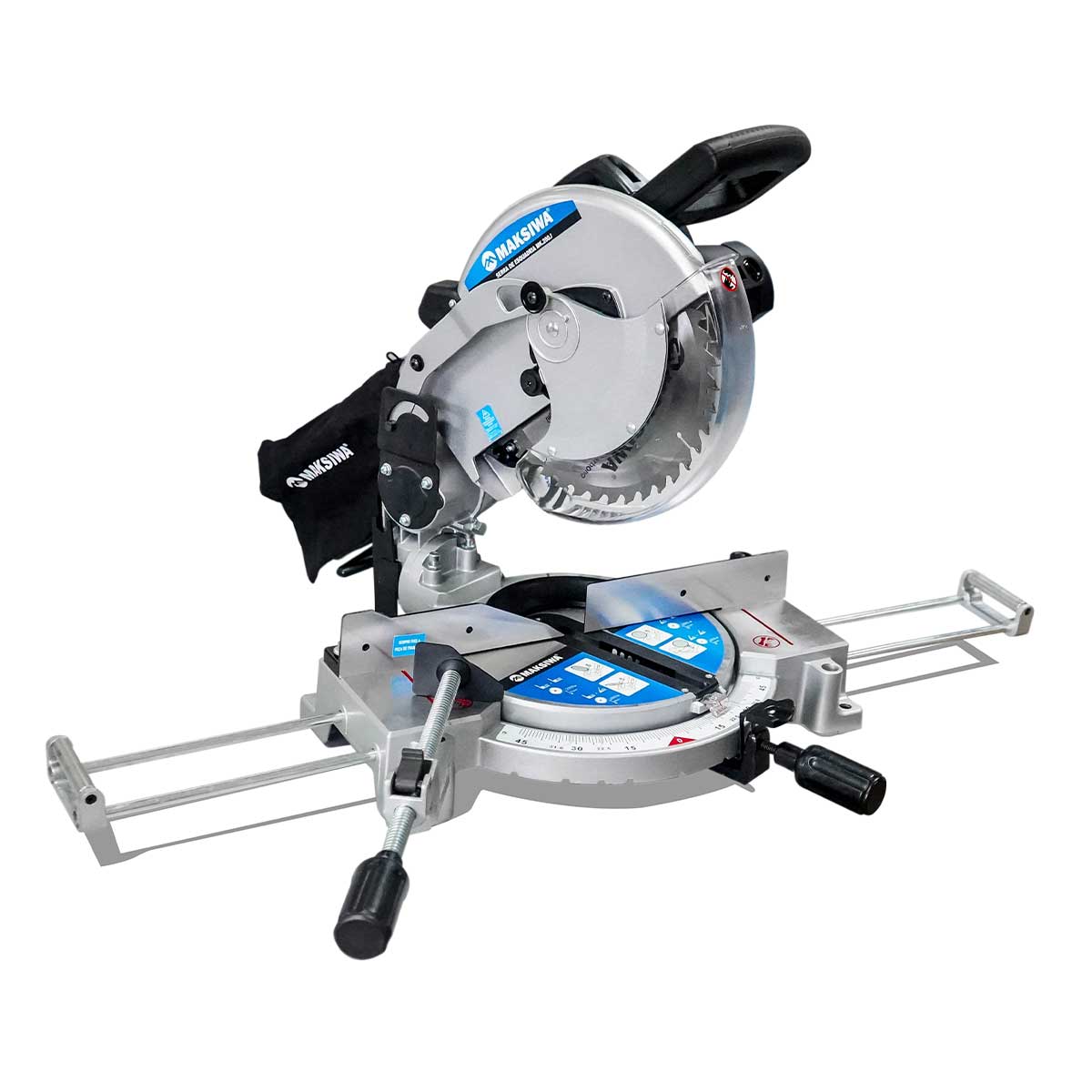

Specification: Blade Size 10" Arbor 5/8” Blade tilt 45º left Table angle 45º left and right Compound cut Yes Extension table Yes Laser guide Yes Motor Specs 1 phase 127 V 14.1 A 1,800 Watts Weight 40 Lbs Warranty 2 years

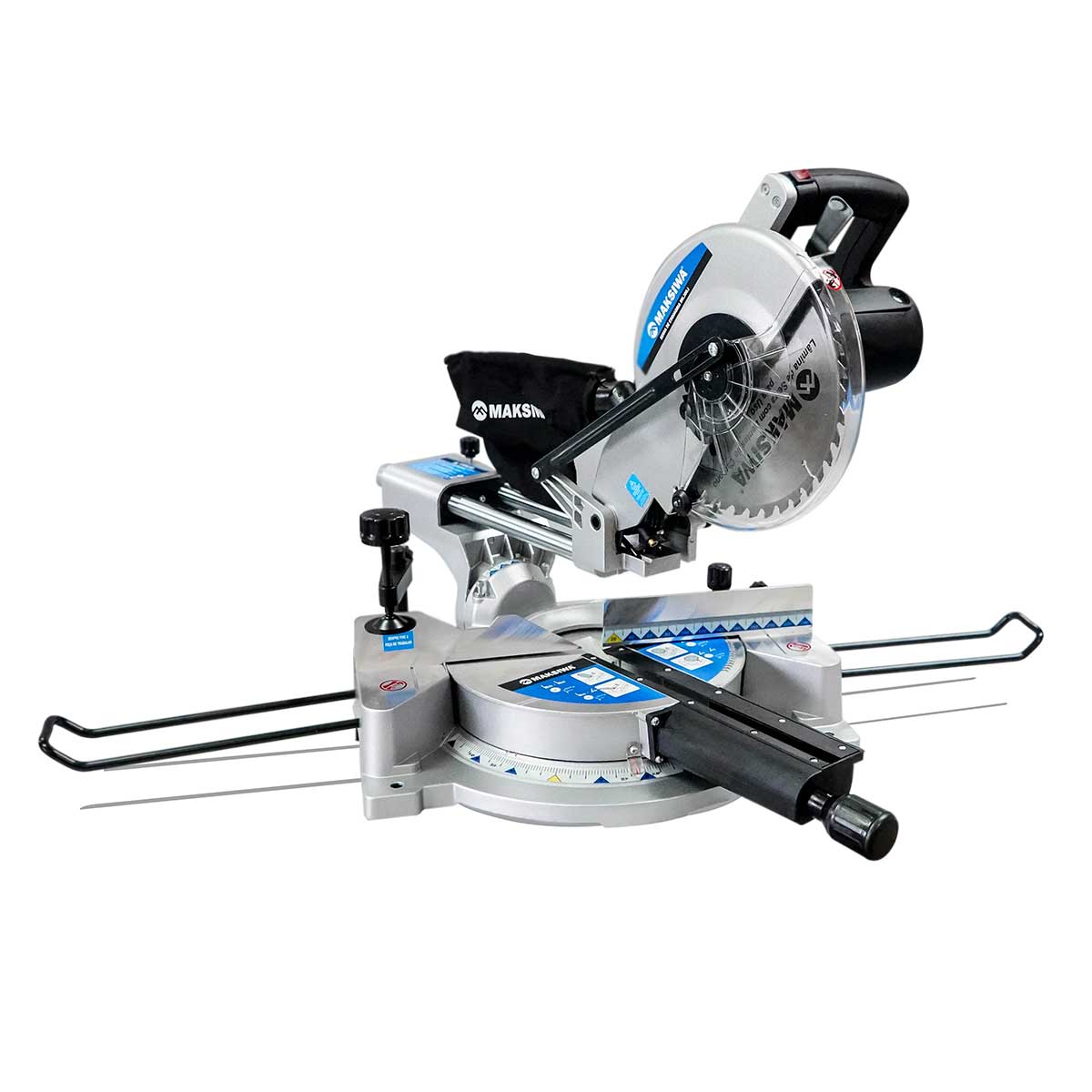

Miter Saw with Laser Guide and Dual Sliding Table Specification: Blade dimensions 10" Arbor 5/8" Table tilt 45º left and right Blade tilt 45º left Compound cut Yes Extension table Yes Laser guide Yes Power 2,000 Watts Volts/Amps 27 V – 15.7 A Weight 48 Lbs Dual sliding rail Yes Warranty 2 years
