Table Saws

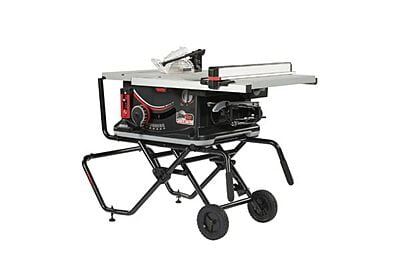

Jobsite Saw PRO 1.5HP, 120V, 60Hz Inc. Cart & Dust Guard

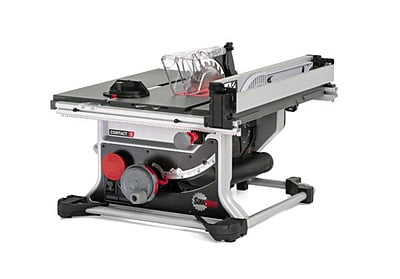

Compact Table Saw – 15A,120V,60Hz

SAWSTOP PATENTED SAFETY SYSTEM: Stops a spinning blade on contact with skin. The blade stops in less than 5 milliseconds, and drops below the table, minimizing a potentially life-altering injury to a mere scratch. UNMATCHED QUALITY: The trunnion and arbor are built for precision, strength and stability. The gas piston elevation delivers smooth and easy adjustability. Table flatness is measured diagonally at 0. 010” maximum gap. DUST COLLECTION: 99% dust collection is delivered above the table with the included dust collection blade guard, and below the table with advanced shrouding around the blade. Available Overarm Dust Collection (Model # TSA-ODC, sold separately) routes dust away from the blade and into the 4” port. RELIABILITY: The Control Box houses the on-off switch, power paddle, and on-board computer, and constantly checks that all systems are working to reliably keep you safe.

SAWSTOP PATENTED SAFETY SYSTEM: Stops a spinning blade on contact with skin. The blade stops in less than 5 milliseconds, and drops below the table, minimizing a potentially life-altering injury to a mere scratch. UNMATCHED QUALITY: The trunnion and arbor are built for precision, strength and stability.

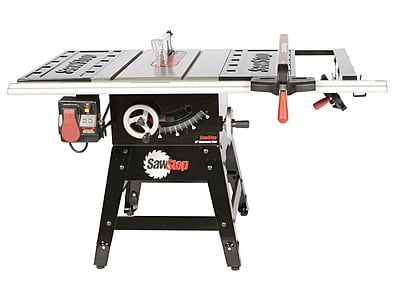

SAWSTOP PATENTED SAFETY SYSTEM: Stops a spinning blade on contact with skin. The blade stops in less than 5 milliseconds, and drops below the table, minimizing a potentially life-altering injury to a mere scratch. UNMATCHED QUALITY: The trunnion and arbor are built for precision, strength and stability. Poly v-ribbed belts reduce vibration and help ensure a great cut. Table flatness is measured diagonally at 0. 010” maximum gap. RELIABILITY: The Control Box houses the on-off switch, power paddle, and on-board computer, and constantly checks that all systems are working to reliably keep you safe. CONFIGURABILITY: Over 150 unique configurations, makes the Contractor Saw the most configurable SawStop saw. Adding a mobile base, sliding crosscut table or router table, are just a few of the ways to make this your ideal saw. UNIVERSAL PERFORMANCE: The Contractor Saw offers versatility, reliability and safety for a variety of users. The cast iron table top (Cast Iron Wing Assembly, CNS-CIWA, sold separately) creates a better-than-hybrid performance in the shop at an affordable price. 36-INCH T-GLIDE FENCE ASSEMBLY: The 36-inch T-Glide Fence & Rail are made of heavy-gauge steel for sure lockdown and reliably square cutting for years without deflection. • Horsepower 1.75hp • Phase 1 phase • Voltage 110v

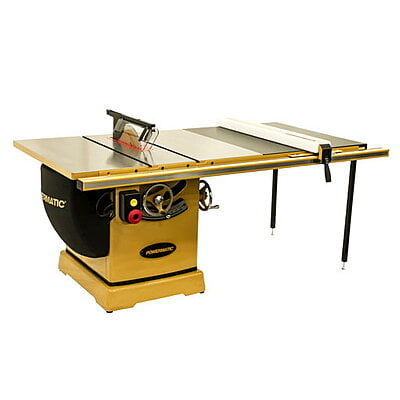

CSA Certified Motor: 7.5HP, 3PH, 230/460V, 18.4/9.2A L x W x H (In.): 48 x 38 x 43 Net Weight (lbs): 738 lbs. Gross Weight (lbs): 831 lbs. Style: Cabinet Saw Prewired Voltage (V.): 230 Table Height from Floor (In.): 35-1/4 Maximum Diameter of Dado (In.): 8 Arbor Speed (RPM): 4500 Maximum Rip Left of Blade (In.) 14 Table Size (In.): 26 x 38 Maximum Width of Dado (In.): 13/16 Blade Diameter (In.): 14 Table Type: Cast Iron Maximum Rip Right of Blade (In.): 50 Dust Port Outside Diameter (In.): 4 Table T-Slot (In.): 3/4 x 3/8 Arbor Diameter (In.): 1 Recommended Circuit Size (Amps.): 30 Dust Collection Minimum CFM Required (CFM): 600 Table Size with Extensions (In.): 48 x 38 Maximum Depth of Cut at 90 Degrees (In.): 5-1/8 Maximum Depth of Cut at 45 Degrees (In.): 3-1/2 Table in Front of Saw Blade at Maximum Depth of Cut (In.): 15-1/2

Specifications: Motor: 3HP, 1PH, 230V, 14.5A L x W x H (In.): 84.75 x 39.5 x 40.5 Net Weight (lbs): 629 lbs. Gross Weight (lbs): 704 lbs. Style: Cabinet Saw Table Height from Floor (In.): 35 Maximum Diameter of Dado (In.): 8 Arbor Speed (RPM): 4500 Maximum Rip Left of Blade (In.): 13-1/2 Table Size (In.): 22 x 30-1/2 Maximum Width of Dado (In.): 13/16 Blade Diameter (In.): 10 Table Type: Cast Iron Maximum Rip Right of Blade (In.): 50 Dust Port Outside Diameter (In.): 4 Table T-Slot (In.): 3/4 x 3/8 Arbor Diameter (In.): 5/8 Recommended Circuit Size (Amps.): 20 Dust Collection Minimum CFM Required (CFM): 400 Table Size with Extensions (In.): 42 x 30-1/2 Maximum Depth of Cut at 90 Degrees (In.): 3-1/8 Maximum Depth of Cut at 45 Degrees (In.): 2-1/8 Table in Front of Saw Blade at Maximum Depth of Cut (In.): 11-1/4

Specifications: Motor: 3 HP Motor Power: 230V Motor Phase: 1 PH single phase Amps: 4.9 Arbor Diameter: 5/8" Arbor Speed: 4500 RPM Blade Diameter: 10" Dust Collection Minimum: 400 CFM Dust Port O.D.: 4" Maximum Depth of Cut at 45 Degree: 2-1/8" Maximum Depth of Cut: 2-1/8 or 3-1/8" Maximum Diameter of Dado: 8" Maximum Rip Left of Blade:13-1/2" Maximum Rip Right of Blade: 50" Maximum Width of Dado: 13/16 T-Slot with Stops Table Type: Cast Iron 50" Rip Fence Router Lift Net Weight: 690 lbs. Ship Weight: 719 lbs. Overall Dimensions: Shipping 84-3/4"L x 39-1/8"W x 40-3/8" H Table Height from Floor: 35" Table in Front of Saw Blade at Maximum Depth of Cut: 10" Table Size: 30-1/2" L x 22" W Recommended Circuit Size: 20 Amp

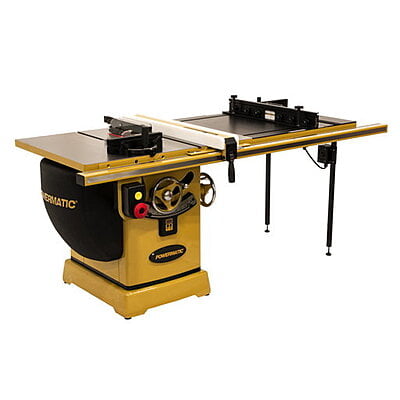

specification: Router Lift Included Motor: 5HP, 1PH, 230V, 21A L x W x H (In.): 84.75 x 39.5 x 40.5 Net Weight (lbs): 662 lbs. Gross Weight (lbs): 739 lbs. Style: Cabinet Saw Table Height from Floor (In.): 35 Maximum Diameter of Dado (In.): 8 Arbor Speed (RPM): 4500 Maximum Rip Left of Blade (In.): 13-1/2 Table Size (In.): 22 x 30-1/2 Maximum Width of Dado (In.): 13/16 Blade Diameter (In.): 10 Table Type: Cast Iron Maximum Rip Right of Blade (In.): 50 Dust Port Outside Diameter (In.): 4 Table T-Slot (In.): 3/4 x 3/8 Arbor Diameter (In.): 5/8 Recommended Circuit Size (Amps.): 30 Dust Collection Minimum CFM Required (CFM): 400 Table Size with Extensions (In.): 42 x 30-1/2 Maximum Depth of Cut at 90 Degrees (In.): 3-1/8 Maximum Depth of Cut at 45 Degrees (In.): 2-1/8 Table in Front of Saw Blade at Maximum Depth of Cut (In.): 11-1/4

Specification: Motor: 5HP, 3PH, 230/460V, 13/6.5A L x W x H (In.): 84.75 x 39.5 x 40.5 Net Weight (lbs): 662 lbs. Gross Weight (lbs): 739 lbs. Style: Cabinet Saw Prewired Voltage (V.): 230 Table Height from Floor (In.): 35 Maximum Diameter of Dado (In.): 8 Arbor Speed (RPM): 4500 Maximum Rip Left of Blade (In.): 13-1/2 Table Size (In.): 22 x 30-1/2 Maximum Width of Dado (In.): 13/16 Blade Diameter (In.): 10 Table Type: Cast Iron Maximum Rip Right of Blade (In.): 50 Dust Port Outside Diameter (In.): 4 Table T-Slot (In.): 3/4 x 3/8 Arbor Diameter (In.): 5/8 Recommended Circuit Size (Amps.): 20 Dust Collection Minimum CFM Required (CFM): 400 Table Size with Extensions (In.): 42 x 30-1/2 Maximum Depth of Cut at 90 Degrees (In.): 3-1/8 Maximum Depth of Cut at 45 Degrees (In.): 2-1/8 Table in Front of Saw Blade at Maximum Depth of Cut (In.): 11-1/4

specification: Motor: 5HP, 3PH, 230/460V, 13/6.5A L x W x H (In.): 84.75 x 39.5 x 40.5 Net Weight (lbs): 644 lbs. Gross Weight (lbs): 719 lbs. Style: Cabinet Saw Prewired Voltage (V.): 230 Table Height from Floor (In.): 35 Maximum Diameter of Dado (In.): 8 Arbor Speed (RPM): 4500 Maximum Rip Left of Blade (In.): 13-1/2 Table Size (In.): 22 x 30-1/2 Maximum Width of Dado (In.): 13/16 Blade Diameter (In.): 10 Table Type: Cast Iron Maximum Rip Right of Blade (In.): 50 Dust Port Outside Diameter (In.): 4 Table T-Slot (In.): 3/4 x 3/8 Arbor Diameter (In.): 5/8 Recommended Circuit Size (Amps.): 20 Dust Collection Minimum CFM Required (CFM): 400 Table Size with Extensions (In.): 42 x 30-1/2 Maximum Depth of Cut at 90 Degrees (In.): 3-1/8 Maximum Depth of Cut at 45 Degrees (In.): 2-1/8 Table in Front of Saw Blade at Maximum Depth of Cut (In.): 11-1/4

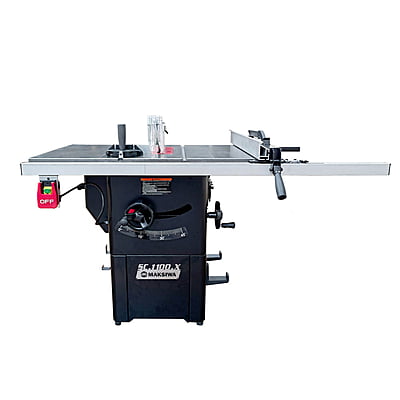

Technical Information SC.1100.X Motor 1 Phase 220V 8A 60Hz 2.5HP 1.8Kw Max Blade Diameter 10" Main Blade Arbor 5/8" Dado Width Capacity 13/16" Blade Speed 4500 RPM Main Blade Max cutting Height at 90° 3 1/8" | 80mm Main Blade Cutting Height at 45° 2 3/16" | 55mm Max Rip Capacity Right 30" Main Table Dimensions (L X W) 27" x 20" Table Extensions Left/Right 12" x 27" Table dimensions 27" x 44" Floor To Table Height 34 1/4" Machine Dimensions (L x W x H) 61" x 39" x 41-3/8" Dust Port 4" Net Weight 264LB / 120KG Shipping Weight 282LB / 128KG

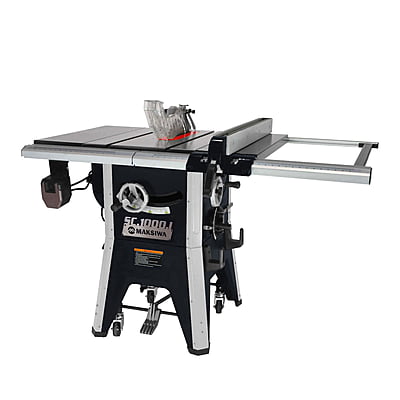

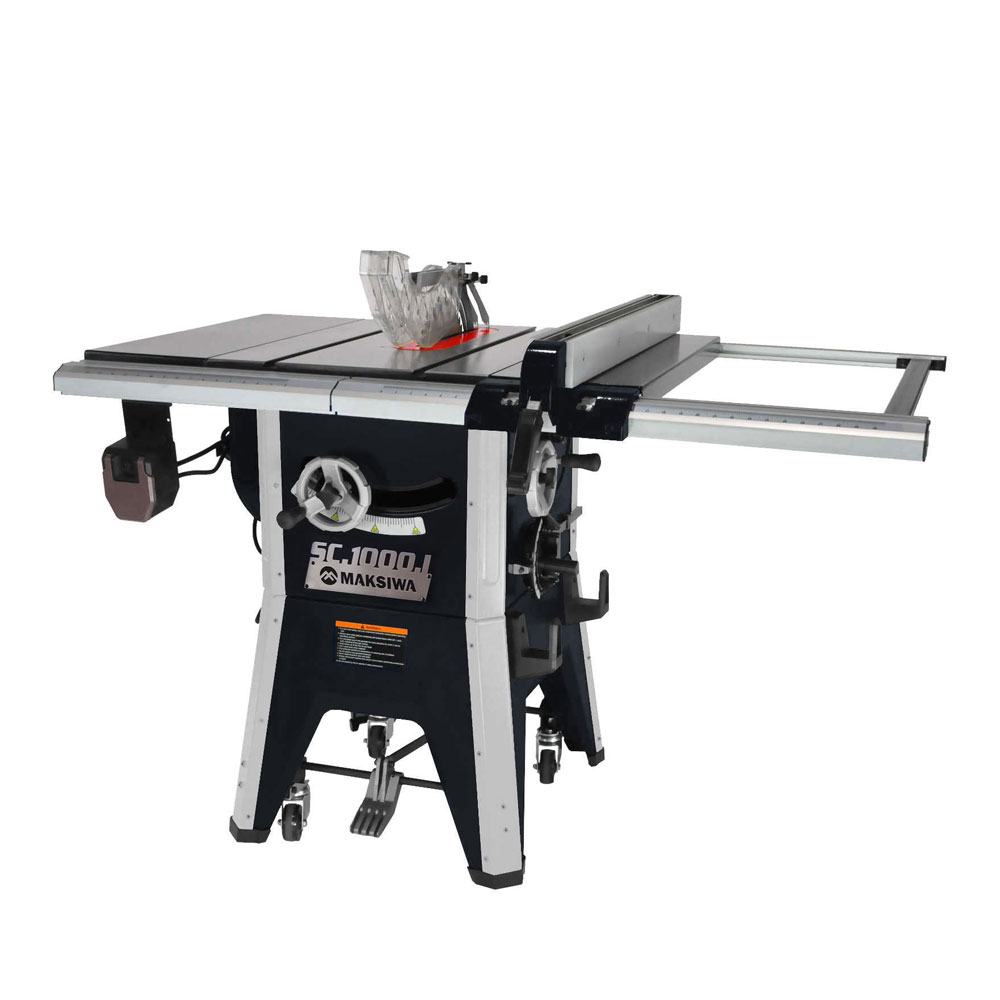

Technical Information SC.1000.I Motor 1 Phase 110V 15A 60Hz 2.4HP 1.8Kw Max Blade Diameter 10" Main Blade Arbor 5/8" Blade Speed 3450 RPM Main Blade Max cutting Height at 90° 3 1/8" | 80mm Main Blade Cutting Height at 45° 2 3/16" | 55mm Max Rip Capacity Right 29 -1/2" Max Rip Capacity Left 14 -1/2" Cast Iron Table Dimensions (L X W) 27" x 20-1/8” Table Extensions Left/Right 9-7/8" x 27" Table dimensions 27" x 40" Floor To Table Top 37" Machine Dimensions (L x W x H) 34” x 56-3/4” x 45- 1/2” "T" Slots (2) 3/4” x 3/8” Dust Port 4" Laser guide Yes Net Weight 264LB / 120KG

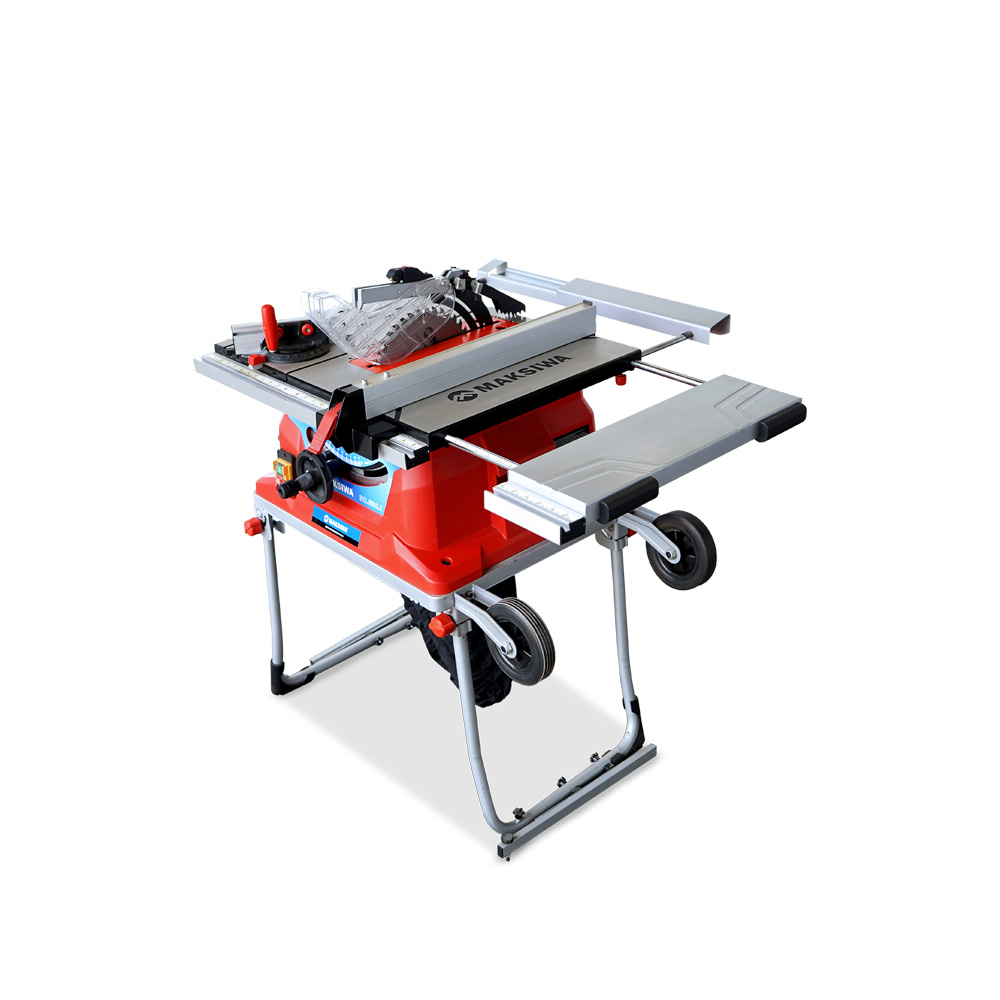

Product description The SC.650.I is a compact table saw that offers performance and durability in a portable size. Motor of 1500W: High power for all applications. Tilt Blade: 0º to 45º. Side Guide of aluminum: Ensuring control and accuracy. Laser Guide: Providing high precision cuts. Sliding table: Provides the squaring function to straight or angled cuts. Work area and firmness: Die casting table and extenders. SC.650.I was design with wheels and retractable legs, ideal to move and carry anywhere. Technical Information SC.650.1 Blade diameter 10 Table dimensions 32-1/2 Blade tilt 45º left Laser guide Yes Max. working height 45º 2-1/8 Max. working height 90º 3-1/8 Sliding table track 14 Speed 5,000 RPM Motor 1 phase Volts/Amps 110 V – 11.8 A or 220 V – 6.8 A Weight 77 Lbs

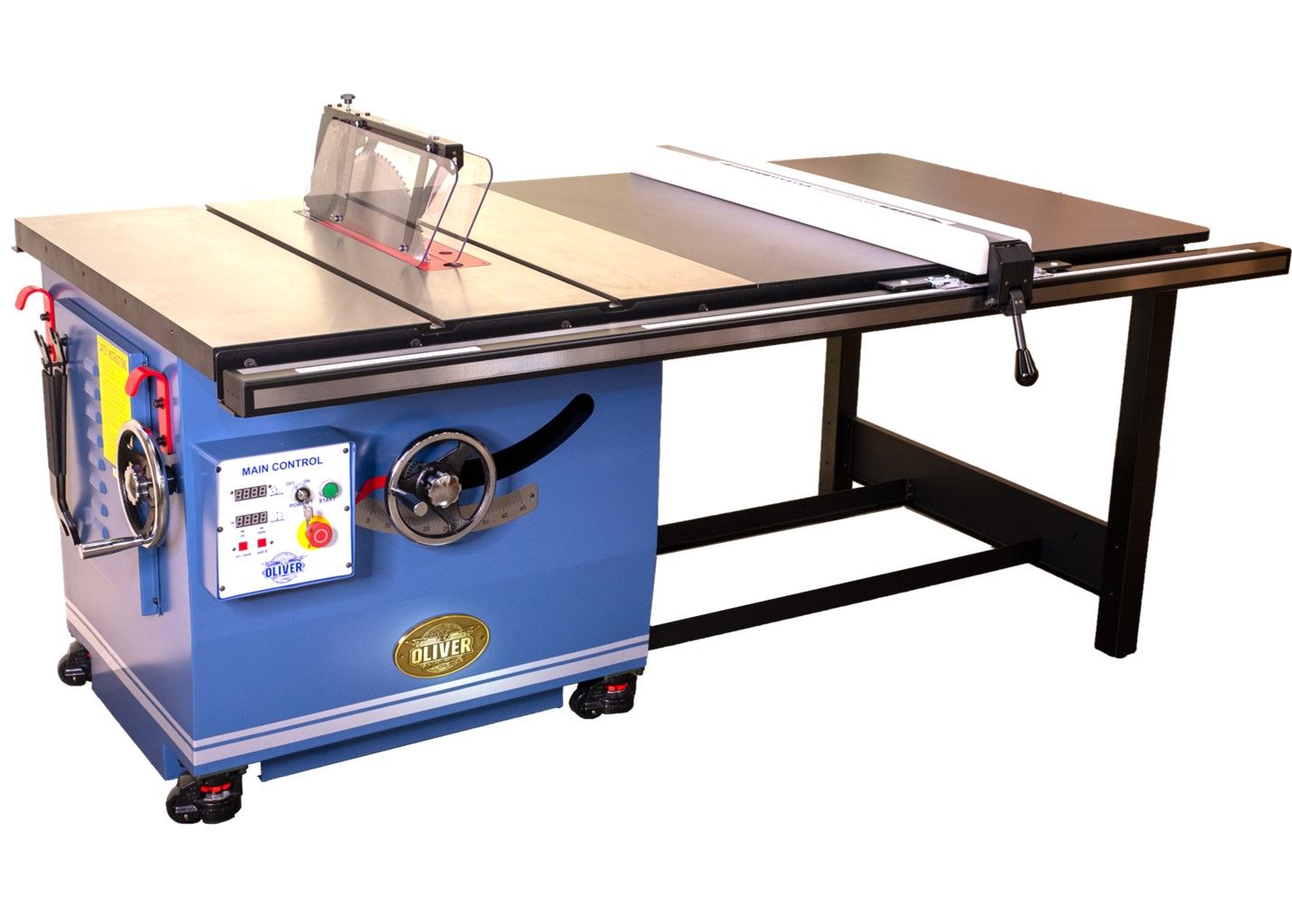

Model Number 4065.003 Ph 3Ph Rail Length w/Side Table w/52" Rail Stock Number 4065.003 Stock No. (52") 4065.003 Stock No. (7.5HP, 3Ph) 4065.003 Blade Diameter 16" Arbor Diameter 1” Blade Tilt Left Arbor Speed 3,800 RPM Maximum Depth of Cut at 90° 6-1/8" Maximum Depth of Cut at 45° 4-3/8" Maximum Width of Dado 11/16” Dado Diameter (Optional) 12” Max Dado Size: 12” Maximum Cut to Right of Blade 52” Rail Maximum Cut to Left of Blade 10” Maximum Rip to Right of Blade: 52” Dust Port Diameter 4" Table Dimensions w/o Extensions 35-13/16“(L) x 39”(D) Wing Size 42-1/2”(L) x 39”(D) Table Dimensions 78-5/16” (L) x 39”(D) Table Height 44" Motor 3PH, 220V Prewired. Optional 440V Available. Motor 3Ph 10HP Footprint 74” (L) x 39”(D) Overall Dimensions 82“(L) x 48”(D) x 44”(H) Net Weight 814 lbs Gross Weight 1,092 lbs.
