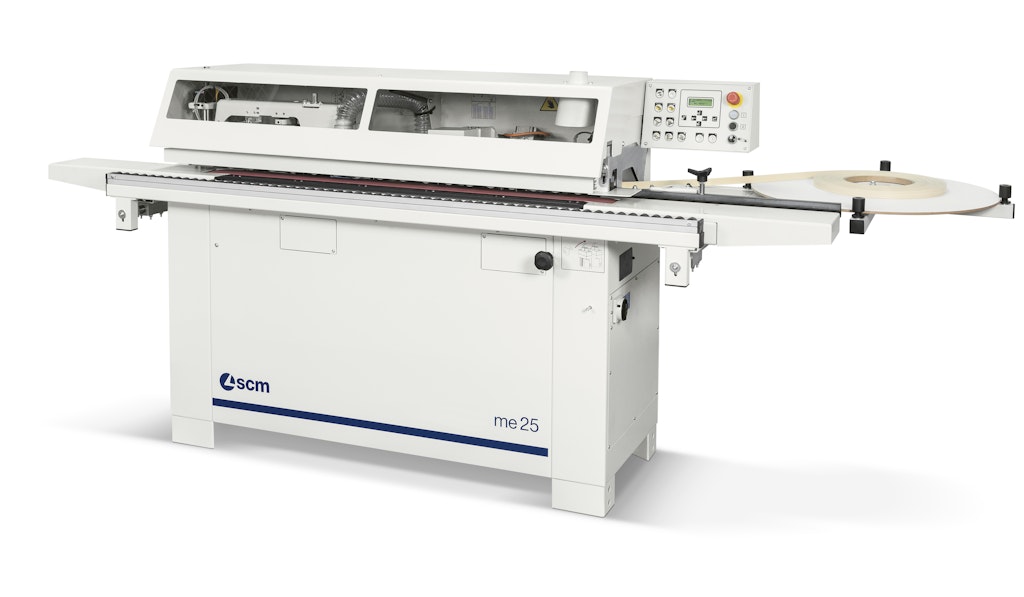

ME 25

Worktable dimensions

2600 x 530 mm (102.31” x 20.81”)

Worktable height

904 mm (35.56”)

Thickness of rolled edges

0.4 - 3 mm (0.02 – 0.06”)

Thickness of edges in strips

Up to 5 mm (0.19”)

Min. ÷ max. panel height

*using the profile scraping

12 - 50 mm (0.5 – 1.94”)

*16 - 50 mm (0.62 – 1.94”)

Min. panel length/width with rolled edges

190 / 65 mm (7.5 – 2.56”)

Feed speed

7 m/min ( 23 ft/min)

Feed motor power

0.9 kW

Operating temperature

20 – 190 °C (68 – 374 °F)

GLUE POT UNIT

Motor

0.21 kW

Glue capacity

~0.8 kg (2 lbs)

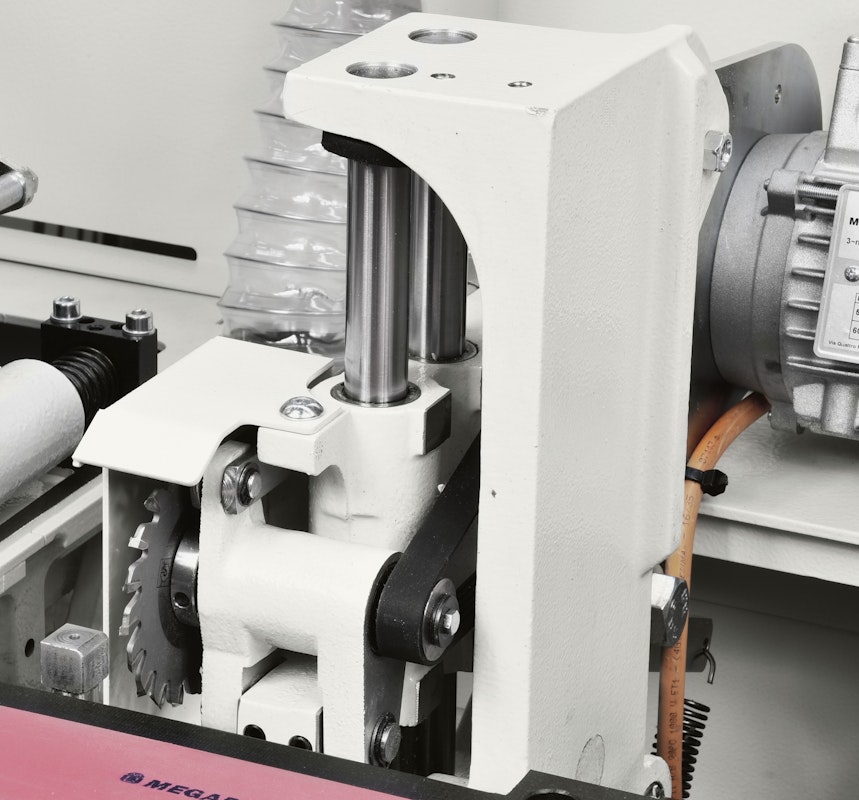

END CUTTING UNIT

Motor

0.66 kW - 12000 rpm

Blade

Ø 90 mm Z20

TOP and BOTTOM TRIMMING UNIT

Motor

2 x 1.3 kW - 12000 rpm

Widia cutters

Ø 75 mm Z4

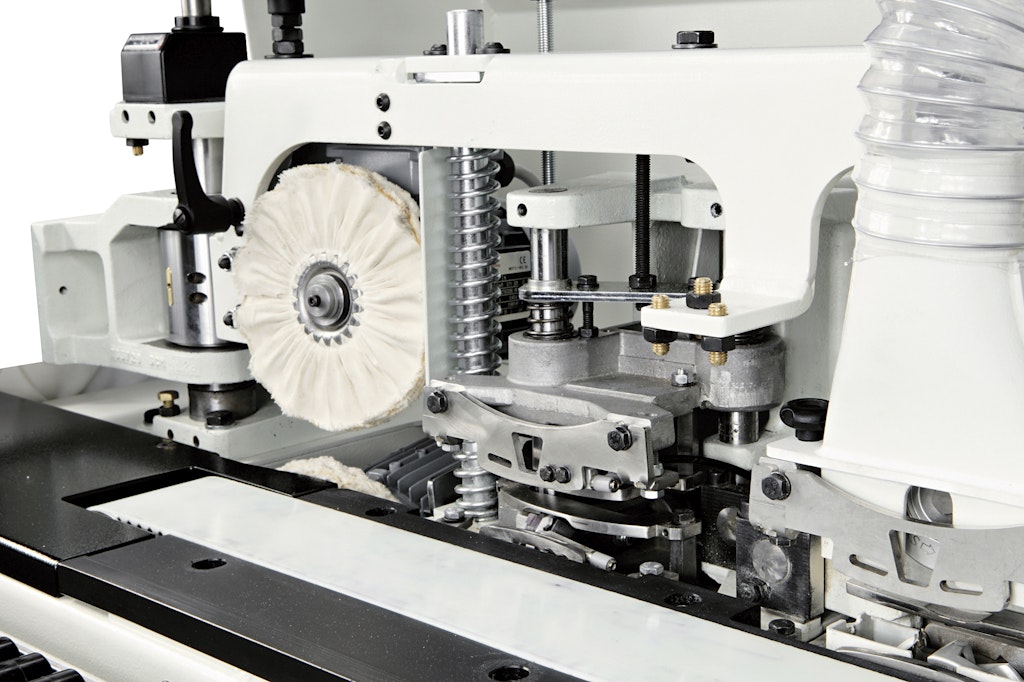

BRUSHING UNIT

Motor power

2 x 0.3 kW - 2800 rpm

Exhaust outlets diameter:

no. 1 base outlets

no. 1 glue pot outlet

120 mm (4.69”)

  60 mm (2.31”)
