The Maggi System 29 Boring Machine provides a 29 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle. Accurate positioning of the boring unit to the table with digital readout 0 to 2.5″ adjustable drilling depth with patented spiral setting device (3) patented quick release material clamps with auto-setting to firmly hold material to table Powerful 2 HP motor 47″ x 13″ cast iron table Side fences with mechanical digital readout for quick and accurate setting 120″ back fence with (2) stops – Maximum stroke 300 mm (12″) Fixed stop at 37 mm for hinges Foot actuated pneumatic clamps and drill cycle Uses 14 LH (red) and 15 RH (black) boring bits Includes: Magnetic Starter with overload protection and (29) quick change chucks Dust Outlet: 3″ Net weight: 705 lbs Dimensions: 59.3″ x 37.8″ x 50″ Tall Crated Dimensions: 59.8″ x 37.4″ x 40.5″ Tall Crated Weight: 815 lbs.

• (2) 23-Spindle heads on 32 mm centers • Distance between first and last spindle center of each head is 27-23/32″ (704 mm) • Front end adjustment for quick and easy set-up • (2) 2 HP 3,500 RPM motors • Max. boring depth is 2-1/16″ (55 mm) • Side depth counter system • Extractable 400 mm support rollers for long panels • Maximum distance between heads is 25-19/32″ (650 mm) • Minimum width is 5-1/8″ (130 mm) • Distance from fence to first head is 15 mm min. to 494 mm max. • Distance from fence to second head is 160 mm to 639 mm max. • Complete with: 46 quick change chucks, 10′ extension fence with (4) flip-stops and (2) pneumatic reference pins • (6) Patented safety clamps • This machine can be used for single or double row line drilling • Uses 24 LH (red) and 22 RH (black) boring bits • Working air pressure 94 psi • Net weight: 820 lbs • Crated weight: 940 lbs

Technical data Minimax AD 21 Max. panel width 833 / 32.75 mm / inches Worktable dimensions 905 x 372 / 35.6 x 14.6 mm / inches Worktable height 900 / 35.5 mm / inches Max. tool diameter 40 / 1.57 mm / inches Min. – max. panel height 10 – 85 / .375 – 3.25 mm / inches Spindle speed 2800 rpm # of Spindles 21 # Spindle Spacing (center-to-center) 32 mm

Technical data Longitudinal stroke mm 200 Vertical stroke mm 160 Transversal stroke mm 125 Tool spindle diameter mm 1÷16 Spindle speed rpm 3000 Three-phase motor starting from kW/Hz 1,5 (1,8) / 50 (60)

Technical data Axes Max. panel dimensions X-Y-Z 3000 x 900 x 50 mm Min. panel dimensions X-Y-Z 300 x 90 x 10 mm Max speed X-Y axes 20 Drilling head Spindles (X axis) 2 (1+1) n. Spindles (Y axis) 2 (1+1) n. Spindles (Z axis) 7 (4X-4Y di cui uno in comune) n. Lama integrata fissa, con taglio in direzione Blade diameter 125 mm Blade thickness 6 mm Motor power 2,2 kW Spindles rotating speed 4460 giri/min Blade rotation speed 5700 giri/min

Technical data Panel length 20 mm (3/4”) 1300 mm (51”) / 2600 mm (102”) Panel width 40 mm (1.57”) ∞ Panel thickness 10 mm (3/8”) 67 mm (2 5/8”) Installed power 13 kW Compressed air 6 BAR Dust extraction hood 125mm (5”) qty 2 Dust extraction 600 cfm Width “X” CNC 1300 mm (51”) Depth “Y” CNC 55 mm (2.17”) Vertical “Z” CNC 80 mm (3.15”) Voltage 460V (220V)/60Hz/3~ Net weight 1600 Kg (3500 lbs) / 2200 Kg (4850 lbs)

Technical data Panel length 20 mm (3/4”) – 1300 mm Panel width 40 mm (1.57”) – ∞ Panel thickness 10 mm (3/8”) – 25.4 mm (1”) Installed power 10 Kw Compressed air 6 BAR Dust extraction hood 60 mm (2 3/8”) Dust extraction 250 cfm Width “X” CNC 1300 mm (51”) Depth “Y” manual 40 mm (1.57”) Vertical “Z” manual 40 mm (1.57”) Voltage 220V/60Hz/3~ Net weight ~1000 kg (2200 lbs)

Technical data Minimax Startech 27 Number of spindles 27 n. Centre distance between spindles 32 mm Spindles rotating speed 3000 rpm Spindles motor power 2 Hp

Technical data Width “X” 1300 mm (51”) Depth “Y” 40 mm (1.57”) Vertical “Z” 40 mm (1.57”) Voltage 460V (220V)/60hz/3~ Net weight ~1200 kg (~2650 lbs)

The Maggi System 23 Boring Machine provides a 23 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle. Accurate positioning of the boring unit to the table with digital readout 0 to 2.5″ adjustable drilling depth with patented spiral setting device (2) patented quick release material clamps with auto-setting to firmly hold material to table Powerful 2 HP motor 37″ x 13″ cast iron table Side fences with mechanical digital readout for quick and accurate setting 120″ back fence with (2) stops – Maximum stroke 300 mm (12″) Fixed stop at 37 mm for hinges Foot actuated pneumatic clamps and drill cycle Uses 11 LH (red) and 12 RH (black) boring bits Includes: Magnetic Starter with overload protection and (23) quick change chucks Dust Outlet: 3″ Net weight: 630 lbs Dimensions: 51.7″ x 37.8″ x 50″ Tall Crated Dimensions: 42.2″ x 37.4″ x 40.5″ Tall Crated Weight: 705 lbs.

The Maggi System 21 Prestige Boring Machine provides a 21 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle. Accurate positioning of the boring unit to the table with digital readout 0 to 2.5″ adjustable drilling depth with patented spiral setting device (2) Patented quick release material clamps with auto-setting to firmly hold material to table Powerful 2 HP motor 34″ x 13″ cast iron table Cast iron side fences with ruler and magnifying glass Mirror imaging device to ensure quick and accurate set-up of the side fences 120″ back fence with (2) stops – Maximum stroke 300 mm (12″) Fixed stop at 37 mm for hinges Foot actuated pneumatic clamps and drill cycle Uses 10 LH (red) and 11 RH (black) boring bits Includes: Magnetic starter with overload protection and (21) quick change chucks Dust Outlet: 3″ Net weight: 605 lbs Dimensions: 40.5″ x 40.5″ x 50″ Tall Crated Dimensions: 42.2″ x 37.4″ x 40.5″ Tall Crated Weight: 685 lbs

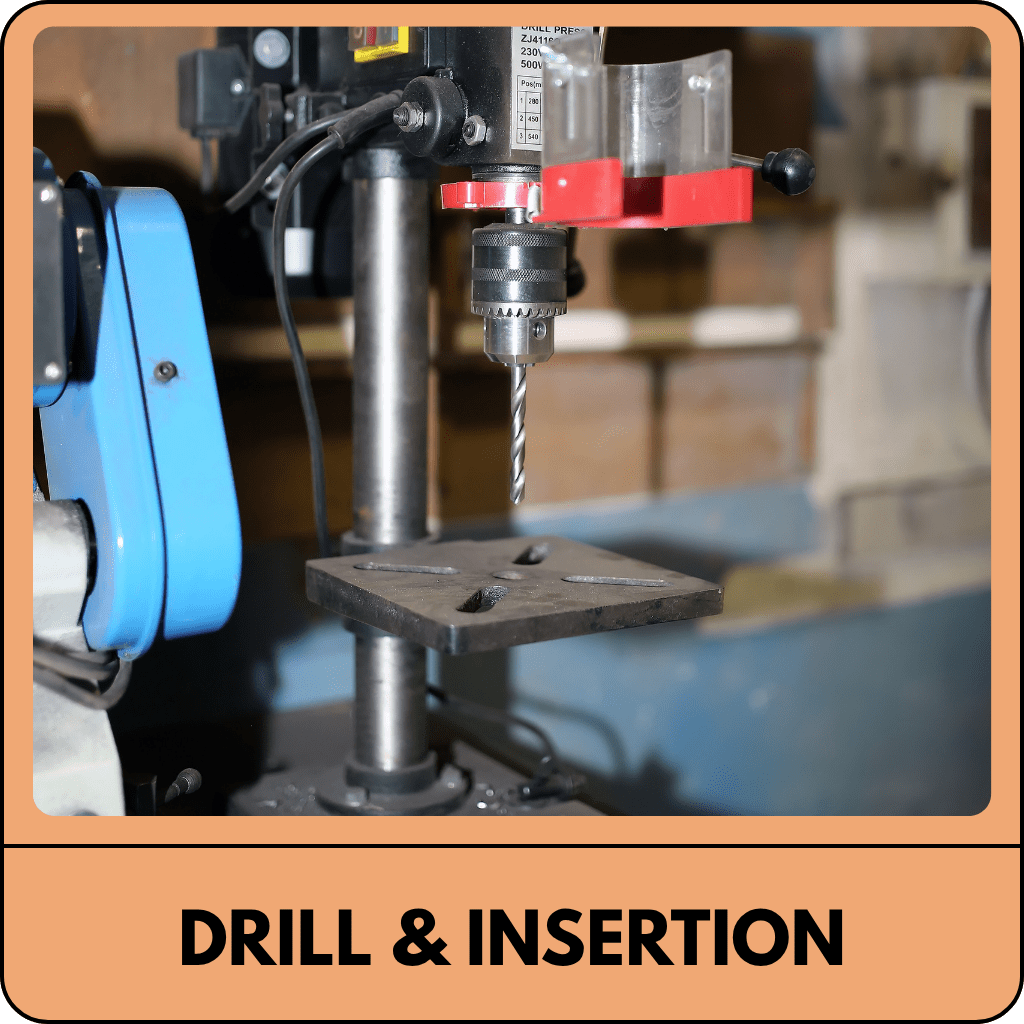

Specifications Motor: 1HP, 1Ph, 115/230V, Prewired 115V, 15/7.5 Amps Base Size: 13-3/8” x 20” Chuck Distance to Base: 43-13/32” Chuck Distance to Table: 24-1/2” Chuck Size: 5/8” Column Diameter: 3-1/8” Drilling Capacity: 5/8” Fence Size: 19-13/16” L x 2-11/16” H Number of Spindle Speeds : Variable Spindle Distance to Base: 46-1/4” Spindle Distance to Table (Max.): 27-3/8” Spindle Speed Range (RPM) : 250-3000 Spindle Taper : MT-2/JT-3 Spindle Travel: 6” Swing: 18” Table Size (L x W): 20” x 14” Table Tilt (Deg.) : 0 to 90 Net Weight: 266 lbs

Technical Information PHM.30 Driver Bit Angled 4° Angle Power 1PH -127 v Height 42.5" Router Bosch 2.25 Hp 16 amp Drill Router Bosch 1.0 Hp 12 amp Router Bit 3/8” bit 1/4’’ shank 2 Drill Bit 1/8” – 2 3/4” Wood Thickness Limit 1/2” – 1-9/16” Adjustable Fence Yes Dust Port 4’’ Air Pressure 85 psi Footprint 25” x 30” x 42 1/2" Laser Guide Yes Speed Control Yes Dual Sided Top Yes – Smooth & Textured Depth Gauge Yes – MM & Inches Weight 174 Lbs

12-Inch Benchtop Variable-Speed Drill Press (JWDP-12)Stock Number JT9-716000 Chuck Size (In.) 5/8 Column Diameter (In.) 2-1/2 Model Number JWDP-12 Motor Amps 5 Motor Power (HP) 1/2 Prop 65 Cancer and Reproductive Harm Spindle Distance to Base (In.) 23-3/8 Spindle Distance to Table (Max.) (In.) 17 Spindle Travel (In.) 3-1/8 Swing (In.) 12 Weight (Lbs.) 85
