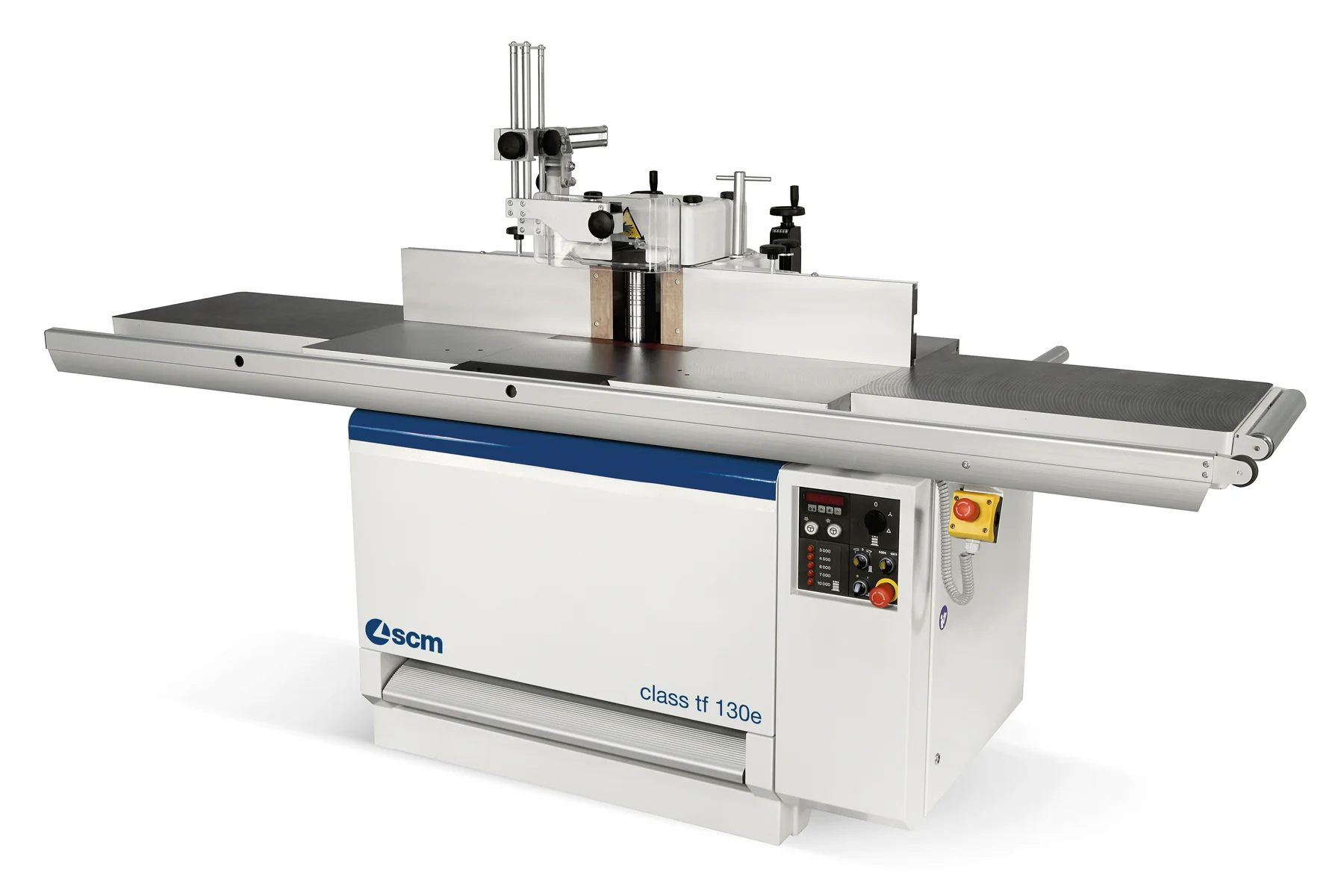

CLASS TF 130E

Technical Specifications Worktable Dimensions: 1200 x 730mm Working Length of Spindle (C.E.) Diam. 30-35 (40-50): 140mm (180) Spindle Base Projection from Table: 52mm Spindle base projection from table with interchangeable spindle: 92mm Max tool diam. retractable under worktable with rings (with "Fast" section table): (300 x 85mm) Spindle fence stroke w/ mechanical programming (positioning with respect to the spindle axis): 125mm (from -125 to +125) External diameter of exhaust outlet on spindle moulder hood: 120mm External diameter of exhaust outlet on base (for the forced electrospindle aircooling 7.5 kW): 120mm Air flow speed of exhaust system: 20 M/sec Exhaust system air consumption: 1700 M3/hr
