ME 25E

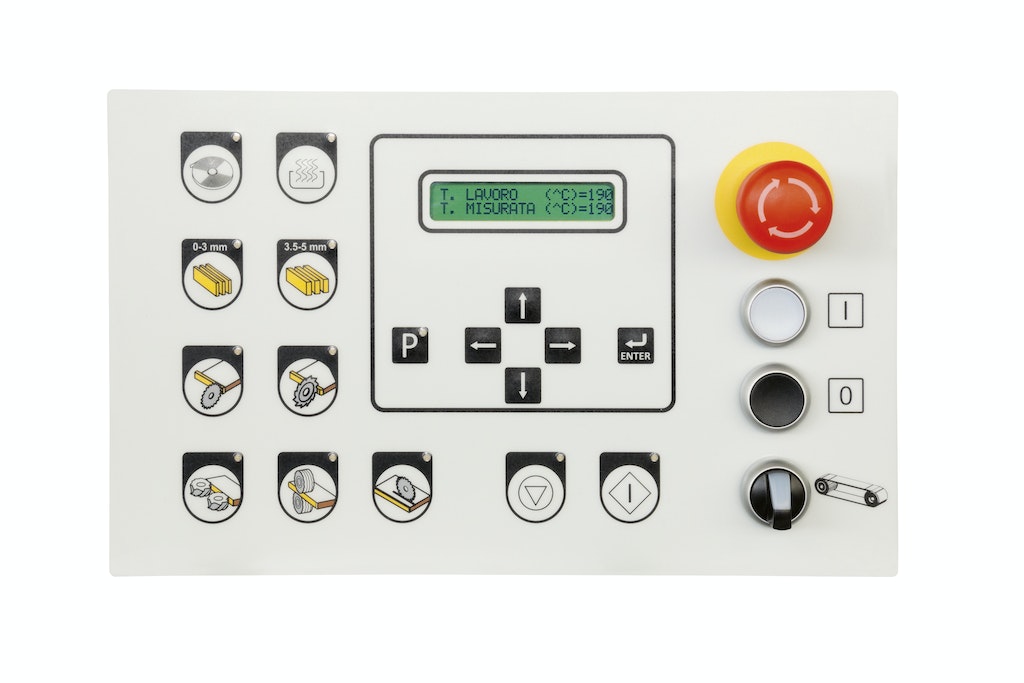

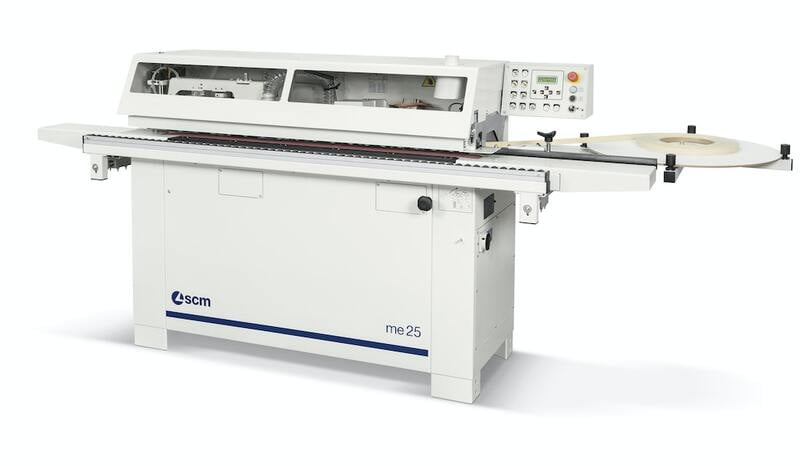

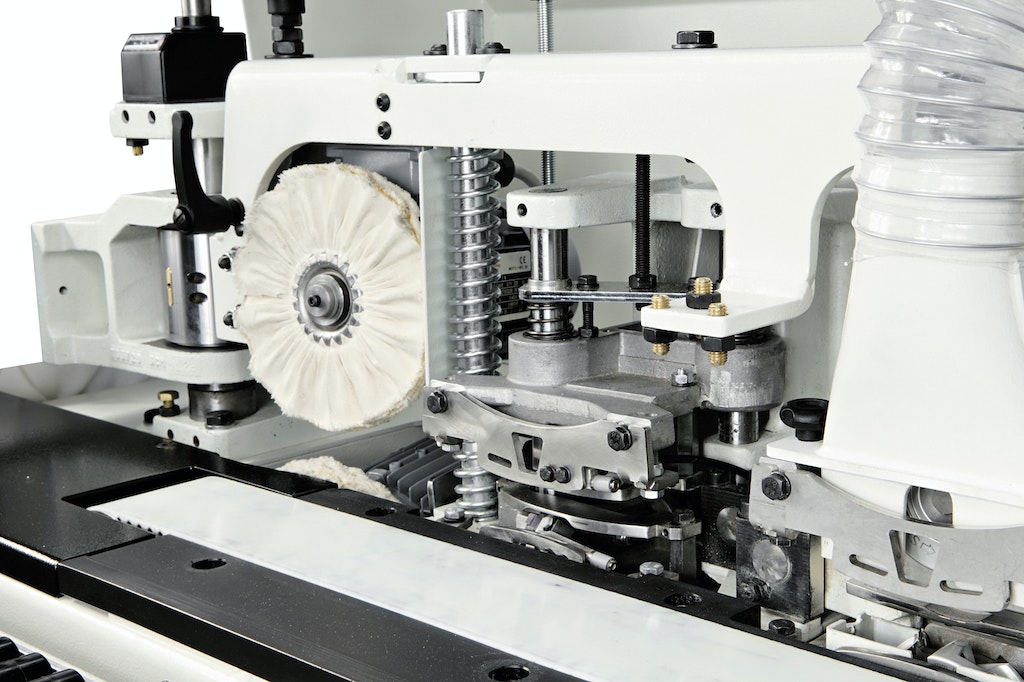

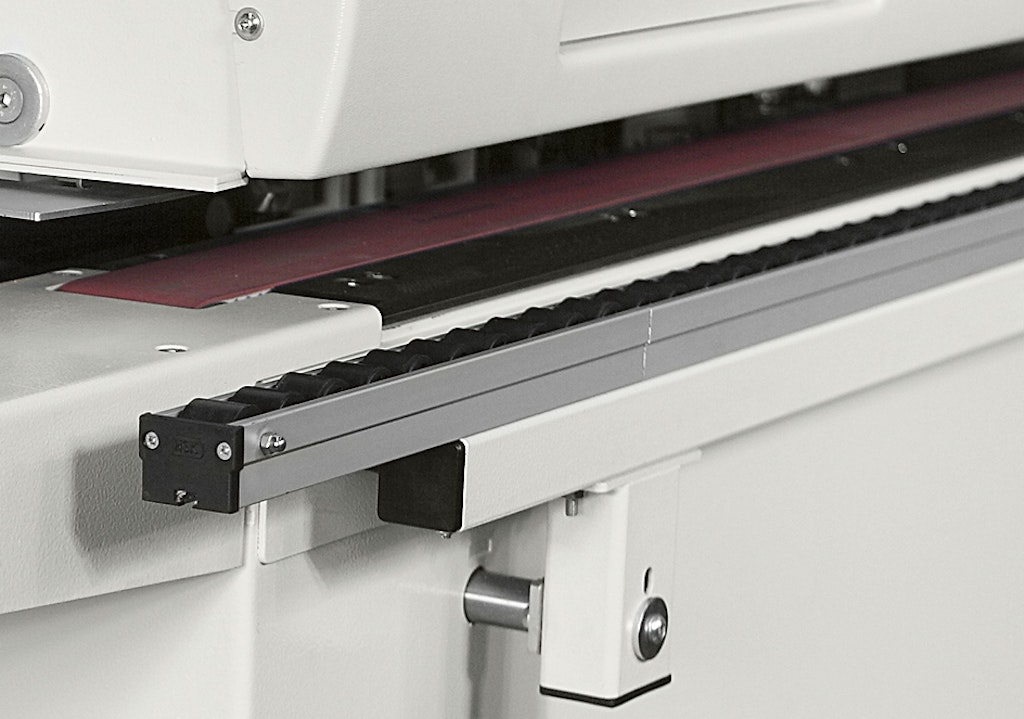

Minimax ME 25 Single Sided Edgebander - Control panel on machine infeed side - Machine frame made of high rigidity ribbed steel to guarantee an excellent support for the operating units - Top thick steel pressure beam with rubber coated wheels - Exclusive feed belt system - Manual adjustment of top beam with automatic positioning of the operating units to the selected panel thickness - Numeric indicator of the selected panel thickness - Wood strip loading device - Glue smoke-specific exhaust outlet; centralized extraction of the other dusts - Panel support roller which can be extended on the entire length of the machine - Safety enclosure - Electrical cabinet with PLC, padlockable main switch and overload protection - Emergency push buttons - Scraping unit (cutter radius 3mm) - Buffing unit (two independent motors – 2,800 rpm) - Adjustable infeed fence with numeric readout - Automatic lowering of the glue pot temperature after temporary non-usage
$19,165.00
Customize
3921299000012231063
Product Details
| me 25 | ||
| Work table dimensions | mm | 2600 x 530 |
| Min. ÷ max. thickness of rolled edges | mm | 0,4 ÷ 3 |
| Max. thickness of edges in strips | mm | 5 |
| Min. ÷ max. panel height | mm | 12 ÷ 50 |
| Min. panel length/width | mm | 190/65 |
| Feed speed | m/min | 7 |
