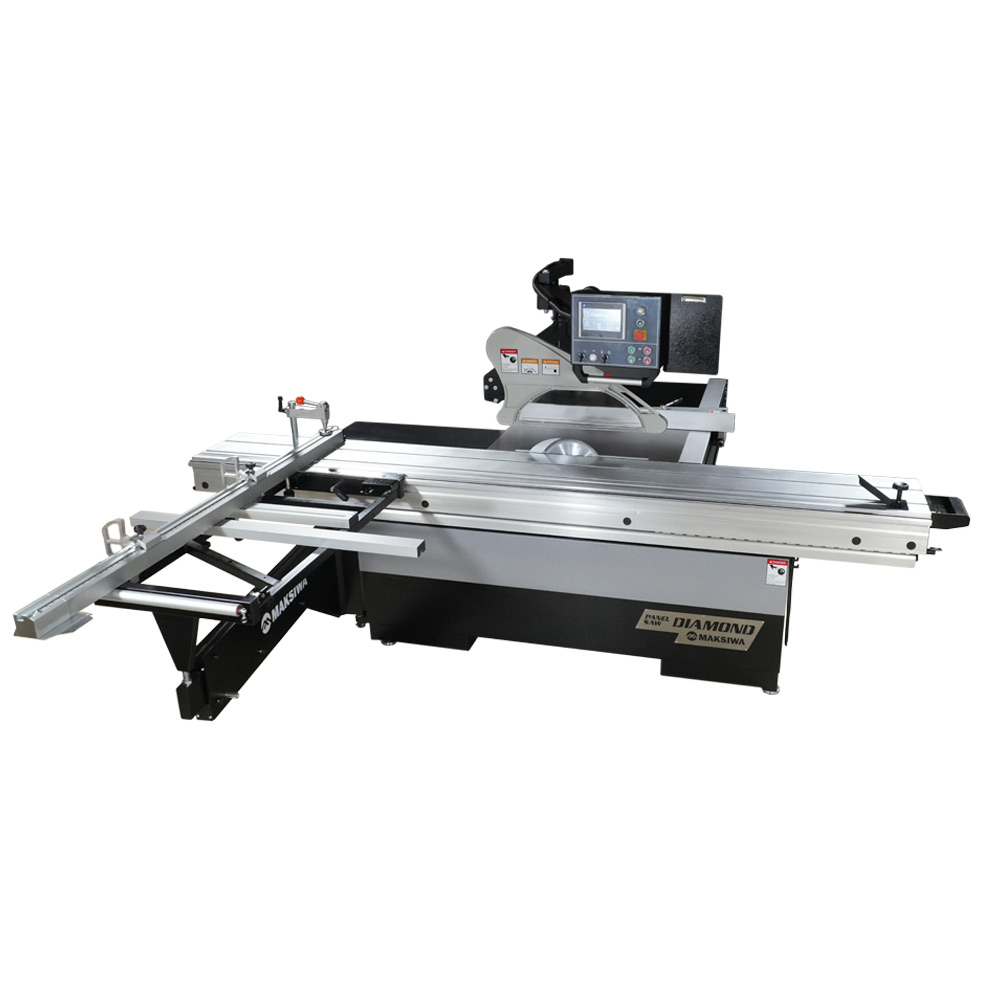

Maksiwa BMD 3200IR

Specification: Main Motor 10 HP/ 7.3 Kw Main Blade Speed 3,000/4,000/5,000 RPM Max Blade Diameter 14" | 355mm Main Blade Arbor 1 3/16" | 30mm Main Blade Max cutting Height at 90° 4" | 101 mm Main Blade Cutting Height at 45° 2 3/4" | 70mm Scoring Motor 3/4 HP / 8000 RPM .75 kw Scoring Motor Blade 4 3/4" | 12mm Scoring Blade Arbor 3/4" | 20mm Scoring Blade Type Conical Max Ripping Capacity 51" | 1295mm Crosscut Capacity 126" | 3200 mm Crosscut Fence Capacity Closed/Open 78" / 120" | 1981mm / 3048 mm Machine Working Dimensions (LxWxH) 132" x 137" x 75" | 3352 x 3479 x 1905 mm Cast Iron Table Dimension (LxWxH) 35" x 21" x 34" | 896 X 548 X 864 mm Sliding Table Dimension (LxW) 126" x 14 " | 3200 x 358 mm Dust Collection Port (2) 4" | 100mm Minimum Dust Collection Requirements 1000 CFM | 28m/min Electrical Specs 3 Phase 220V 40 Amps 60 Hz Main Body Crate Dimensions (LxWxH) 83" x 45" x 45" | 2108x 1143 x 1143 mm Main Body Crate Weight Net/Gross 1470 LBS | 667 KGS Sliding Table Crate Dimensions (LxWxH) 133" x 18" x 15" | 3378 x 457 x 381 mm Sliding Table Crate Weight Net/Gross 274 LBS | 124 KGS
