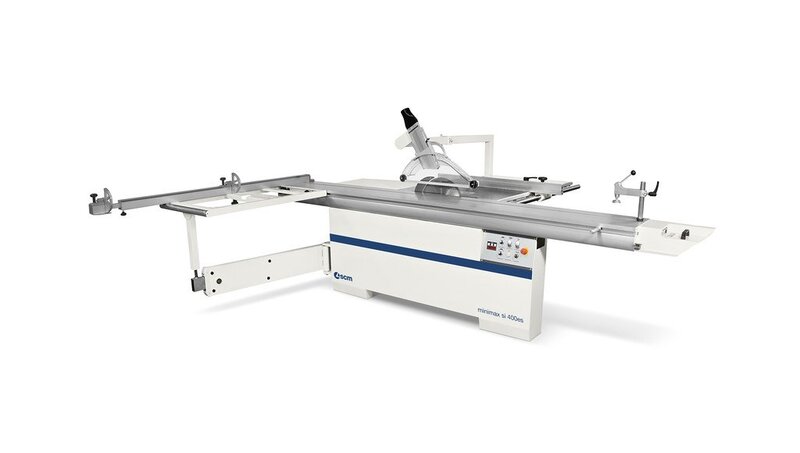

SI 400 ES
The minimax si 400es is the professional circular saw with tilting blade perfect for those who requires quality without compromises, precision and smoothness.
Perfect and easy cuttings of veneer panels and thick solid wood material are ensured by the cast iron saw unit composed by a rigid closed loop structure and a scoring blade unit.
The saw blade uses 100% of the motor power, thanks to the scoring blade with an independent motor as standard. An optimal support is given also to larger pieces thanks to the sliding table 360 mm wide.
Customize
Product Details
TECHNICAL SPECIFICATIONS
cast iron worktable dimensions | 940 x 560 mm (37” x 22”) |
Main blade motor power | 4.8 HP(1ph) – 8H(3Ph) |
Max. saw blade diameter (with scoring blade installed) | 400 mm (15.69”) |
Saw blade arbor size | 25.4 mm (1”) |
Scoring blade motor power | ~ 1 HP |
Scoring blade diameter | 120 mm (4.69”) |
Scoring blade arbor size | 20 mm (0.75”) |
Diameters to be used simultaneously | 400 x 120 mm (15.69” x 4.69”) |
Main blade speed | 4000 rpm |
Scoring blade speed | 9200 rpm |
Blade tilting | 90° ÷ 45° |
Max. cutting height at 90°/45° (with 400 mm blade) | 136 / 97 mm (5.31” / 3.81”) |
Max. squaring stroke | 3200 mm (10.5’) |
Cutting width on parallel fence | 1270 mm (50”) |
Exhaust outlets diameter: Frame outlet Overhead guard |
120 mm (4.69”) 80 mm (3.12”) |
