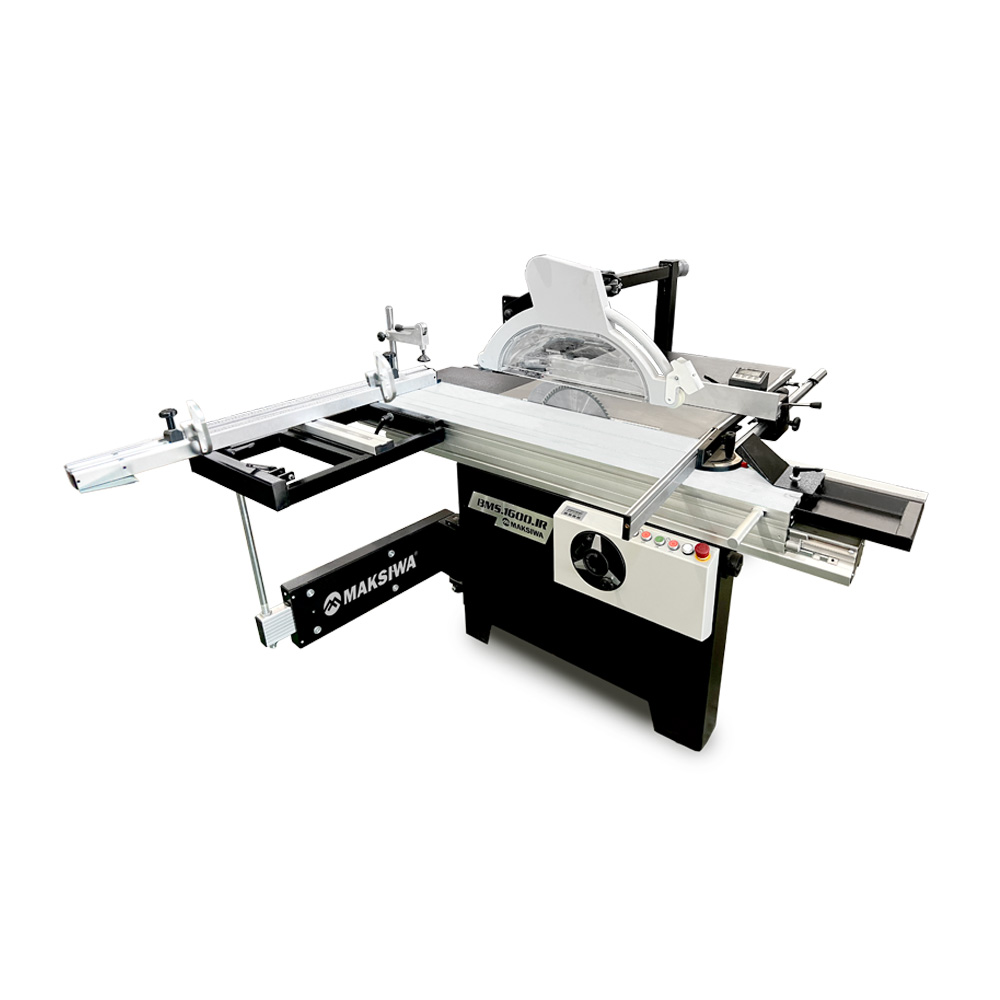

Maksiwa Sliding Panel Saw BMS.1600.IR

Technical Information BMS.1600.IR Main Motor 5 HP 4000 RPM 3.7 Kw Max Blade Diameter 12" | 305mm Main Blade Arbor 30mm Main Blade Max Cutting Height at 90º 3 1/2" Main Blade Max Cutting Height at 45º 2 1/2" Scoring Motor 1 HP 8000 RPM .74Kw Scoring Motor Blade 4 3/4" | 120mm Scoring Blade Arbor 3/4" Scoring Blade Type Conical Max Ripping Capacity 35 1/2" | 900mm Crosscut Capacity 63" Crosscut fence max. (Closed/Open) 48" / 80" Machine Working Dimension (LxWxH) 79" x 115" x 66" Sliding Table Dimension 63" x 12" Cast Iron Table dimension (LxWxH) 32 1/2" x 21" x 35 1/2" Max Tilt 45º Dust Collection Port 4" Electrical Specs 1 PH 220V 30 Amps 60Hzs Weight 1000 lbs
