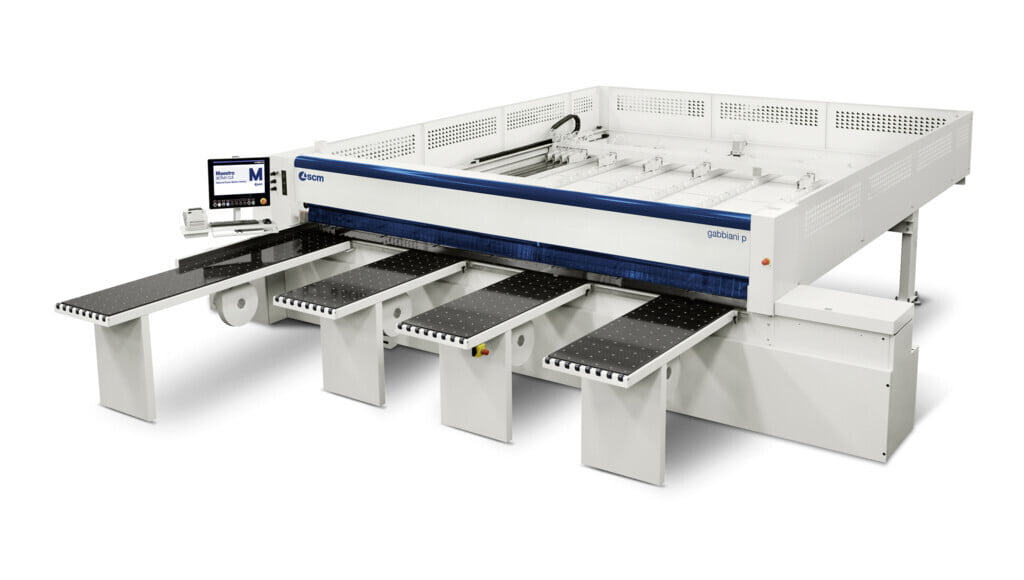

Gabbiani P80
Heavy Duty Italian Made Beam Saw
Customize
Product Details
GENERAL DATA
Gabbiani P80
Blade projection mm 80 (3.15”)
Worktable height mm 950 (37.4”)
Standard clamps q.ty 5
Total clamps for 33 version q.ty 7
CUTTING DIMENSIONS Version 33 mm 3300x3200 (130”x126”)
AXES SPEED Variable saw carriage speed m/min 0 – 120 (0-393.7 ft/min)
Variable pusher speed m/min 70 (229.7 ft/min)
MAIN SAW BLADE
Motor power (S6 -40%) - 60hz (star-delta start) Hp 15
Rotating speed – 60 hz rpm 5580
Blade diameter mm 340 (13.38”)
Blade shaft diameter mm 80 (3.15”)
SCORING SAW BLADE
Motor power (S6 -40%) - 60hz Hp 2
Rotating speed – 60 hz rpm 7020
Scoring saw blade diameter mm 200 (7.87”)
Scoring blade shaft diameter mm 80 (3.15”)
INSTALLATION Installed motor power kW 12÷15
Machine voltage 230 V / 60 hz
Compressed air consumption NL/min 300
Requested operating pressure bar 7
Extraction flow rate m3/h 2190
Exhaust speed m/sec 20
Exhaust outlet diameter mm 4x120
