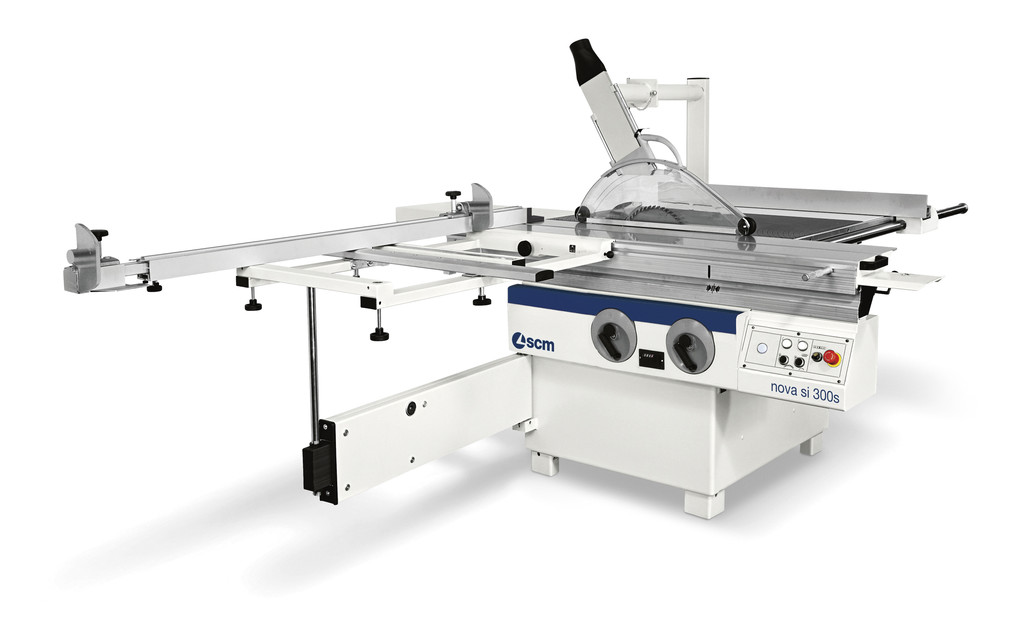

NOVA SI 300S
Guaranteed quality at your fingertips!
Essential configuration with complete equipment to carry out professional machining. Maximum torsional rigidity and the total absence of vibration through the closed loop structure of the saw unit which ensures perfect alignment of the blades during tilted and difficult cuts. The wide section of the carriage, with closed reticular geometry provides extreme rigidity and minimum deflection. A smooth operating motion is guaranteed over time by the system of sliding bearings running on hardened steel guides using an exclusive method of mechanical fixing.
Essential configuration with complete equipment to carry out professional machining. Maximum torsional rigidity and the total absence of vibration through the closed loop structure of the saw unit which ensures perfect alignment of the blades during tilted and difficult cuts. The wide section of the carriage, with closed reticular geometry provides extreme rigidity and minimum deflection. A smooth operating motion is guaranteed over time by the system of sliding bearings running on hardened steel guides using an exclusive method of mechanical fixing.
$14,475.00
Customize
Warranty Information
1 Year Parts Only Factory Warranty Stock
In Stock Product Details
MACHINE CONFIGURATION
(Options and accessories included with this machine)
- Expandable scoring blade
- Eccentric clamp
- Saw blade 315 mm
- Overhead saw guard with incorporated dust extraction
TECHNICAL FEATURES
blades tilting |
| 90° ÷ 45° |
max. saw blade diam. with scoring blade installed | [mm] | 315 (12.4”) |
max. saw blade projection from table at 90°/45° | [mm] | 100/70 (3.87”/2.75”) |
scoring blade diameter | [mm] | 120 (4.75”) |
squaring stroke | [mm] | 1600 (62.94”) |
cutting width on parallel fence | [mm] | 1270 (49.94”) |
Other technical features: |
|
|
three-phase motor |
| 6kW (8hp) 60Hz |
exhaust outlets diameter | [mm] | 120 (4.75”) |
USA version Voltage-Frequency 220V-60Hz
